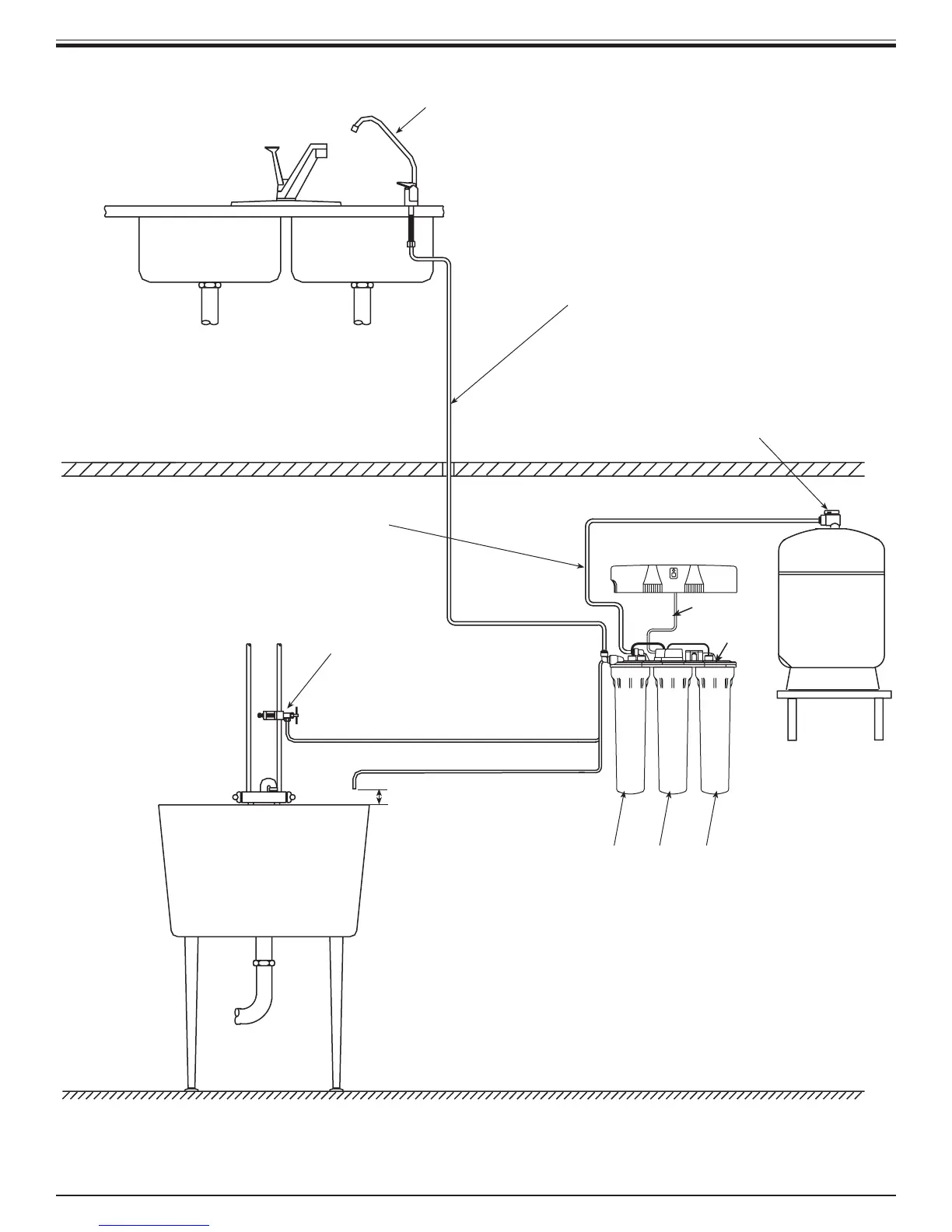

HOLDING TANK
SHUTOFF VALVE
(Open Position)
FLOOR
DISPENSING
FAUCET
PRODUCT
(3/8" Blue)
DRAIN
(1/4" Black)
RO MANIFOLD
COVER WITH OPTIONAL
WATER QUALITY MONITOR
INLET
(1/4" Red)
TANK
(3/8" Yellow)
FEED WATER
SADDLE VALVE
(COLD WATER
LINE ONLY)
1" AIR GAP
REQUIRED
BASEMENT
FLOOR
NOTE: FOR BEST FLOW RATE,
KEEP TUBING FROM R.O.
MANIFOLD TO DISPENSING
FAUCET AS SHORT AS
POSSIBLE
NOTE: FOR BEST FLOW RATE,
KEEP TUBING FROM HOLDING
TANK TO R.O. MANIFOLD AS
SHORT AS POSSIBLE
PLEASE NOTE: IF AIR GAP ON FAUCET IS NOT USED IN BASEMENT
INSTALLATIONS, A PROPER AIR GAP MUST BE CREATED. PLEASE
CHECK WITH LOCAL PLUMBING CODES. SEE EXAMPLE ABOVE.
DRINKING
WATER
HOLDING
TANK
WATER QUALITY
MONITOR CABLE
REVERSE
OSMOSIS
MEMBRANE
HOUSING
ACTIVATED
CARBON
POST FILTER
HOUSING
SEDIMENT/
CARBON
PREFILTER
HOUSING
MOUNT HOLDING
TANK ON SHELF OR
STRAP BETWEEN
FLOOR JOISTS
(Shelf Or Straps Not
Included)
