Procedure to disassemble the Delivery Pipe
Clean the pipe with deionized water.

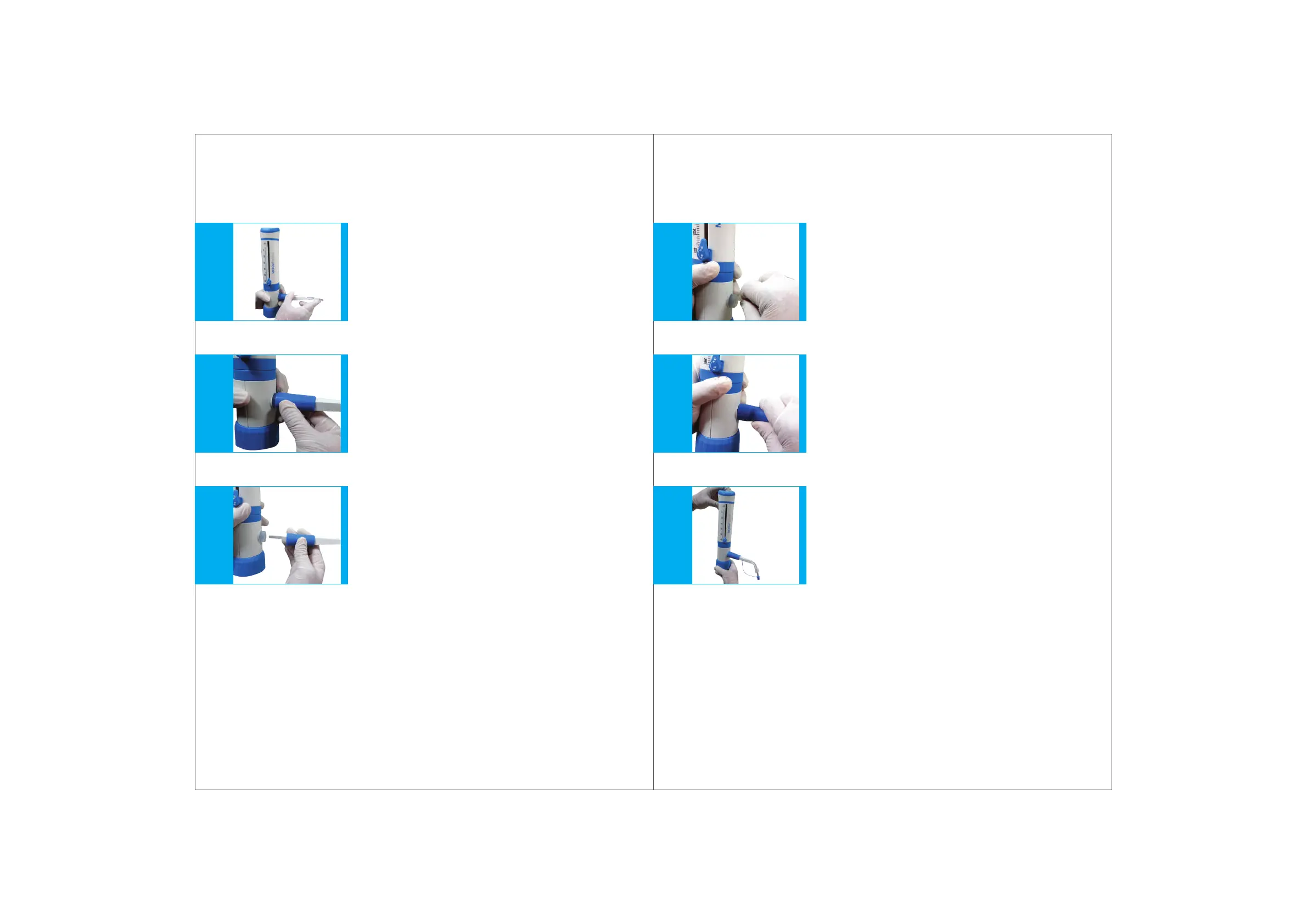

Fig. 14.8Fig. 14.9Fig. 14.10
Straighten the delivery nozzle.
(Fig. 14.8)
Unscrew the chuck nut.
(Fig. 14.9)
Pull the pipe out of the housing so that the complete
delivery pipe is disassembled from the instrument.
Do not remove the delivery pipe out of the
delivery pipe cover.
Delivery pipe housing will look as shown in Fig. 14.10
1.
2.
3.
4.
Procedure to reassemble the Delivery Pipe
Fig. 14.11Fig. 14.12Fig. 14.13
First push the delivery pipe into the housing so that
it is completely and securely fitted.
(Fig. 14.11)
Screw the chuck nut to complete the assembly
(Fig. 14.12)
Adjust the delivery nozzle.
(Fig. 14.13)
1.
2.
3.
