A104 Assembly Procedure

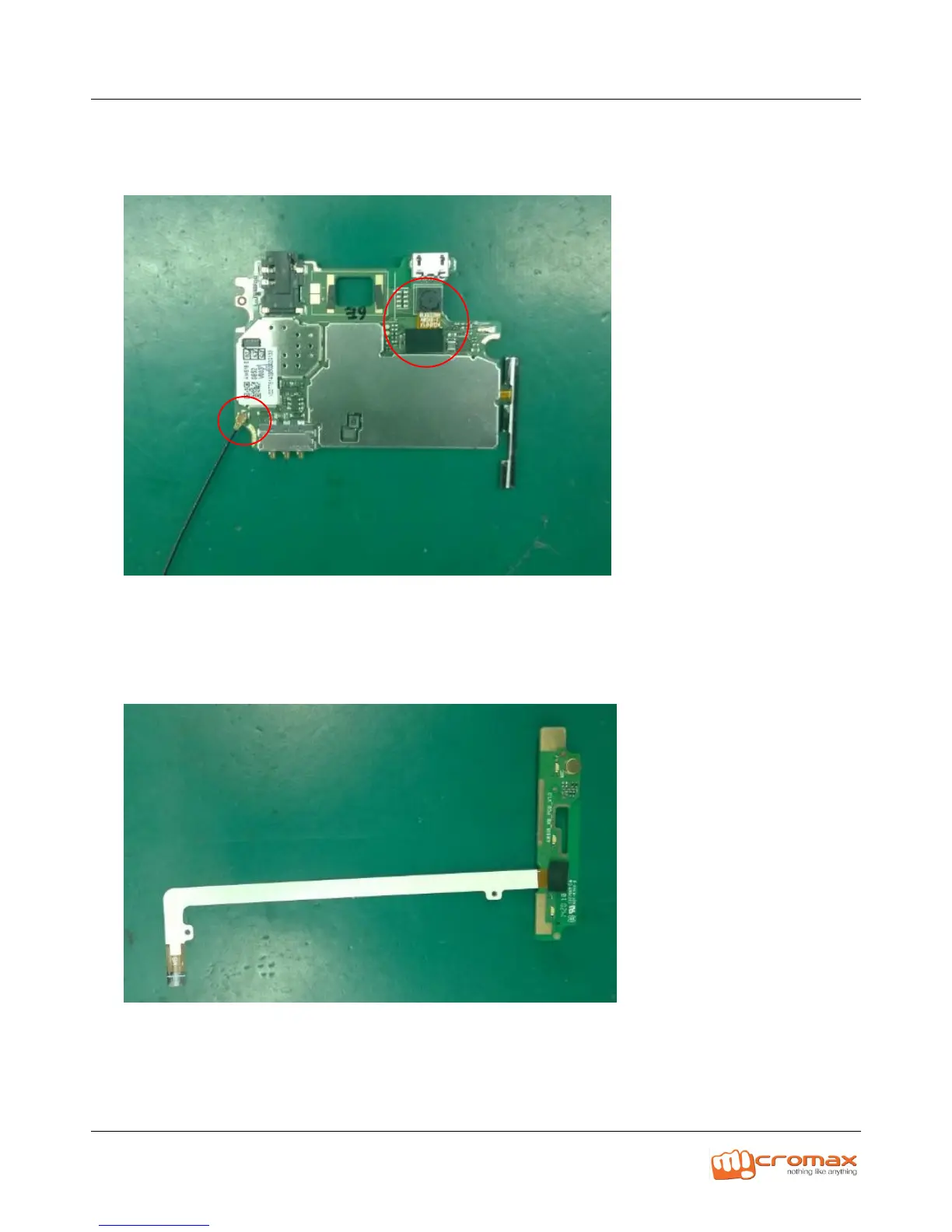

(2) Assemble coaxial cable, camera and camera mylar.
(3) Fit the main FPC on small board and affix the mylar.
