PREPARING FOR SPRAYING
1
4
3
a) the sound pressure level at the operator’s ear should not
exceed 70 dB(A).
b) the weighted RMS acceleration value at the hands when using this
machine should not exceed 2.5 m/sec.
The sprayer is delivered in a collapsed form. To assemble ready for spraying:
1) Extend the sprayer and securely connect the feed tube to the flow valve.
3) Remove the atomiser protective cover and check by hand that the atomiser
disc spins freely.
4)Turn on the switch .
N.B. Before spraying for the first time with the HERBI-4, the spray pattern
produced should be checked using only water (see ‘BEFORE SPRAYING’).
Acoustic information:
Vibration:
2) Connect the male 3 pole connector from the lance to the tank female 3 pole
connector and lock the both connector.
2
5
3

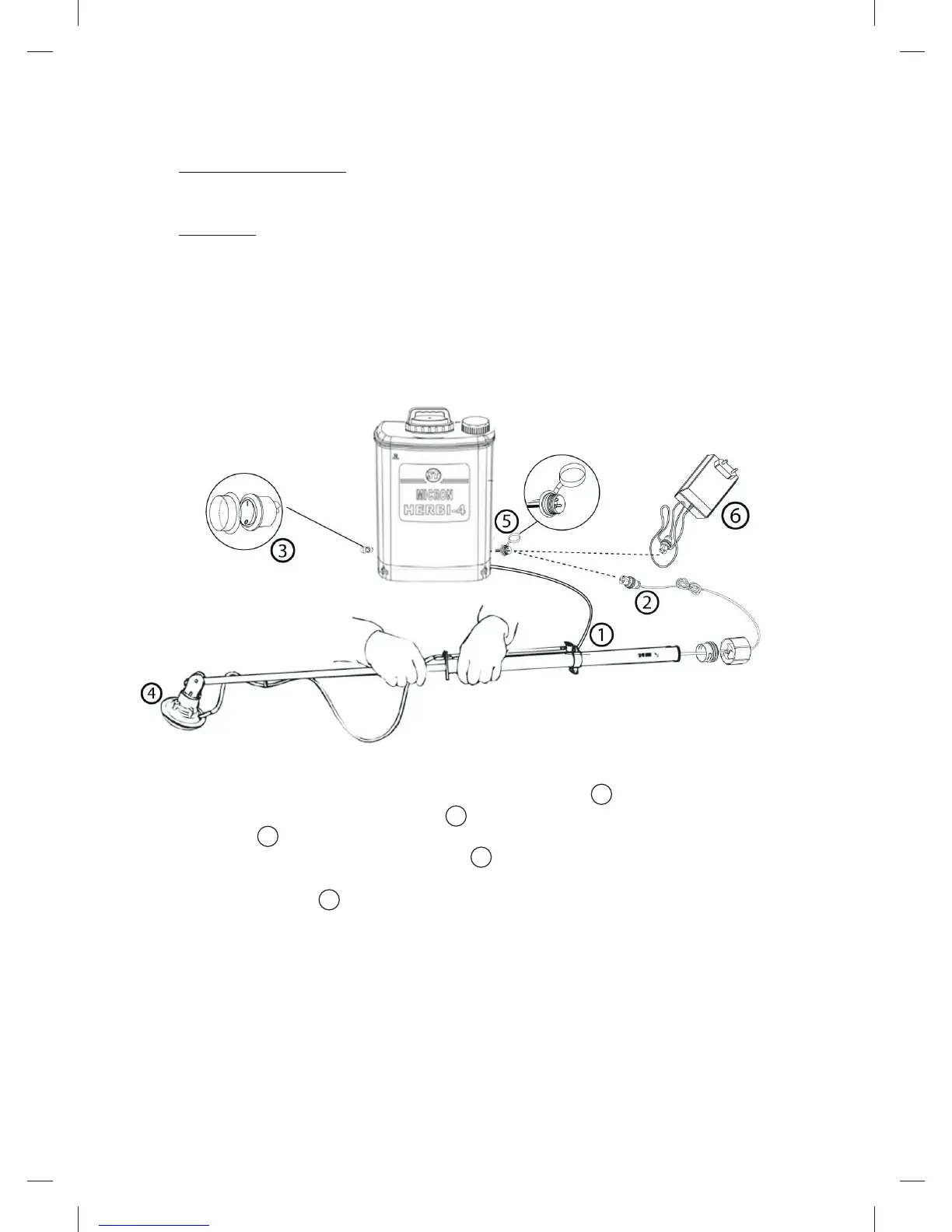

DIAGRAM 2
