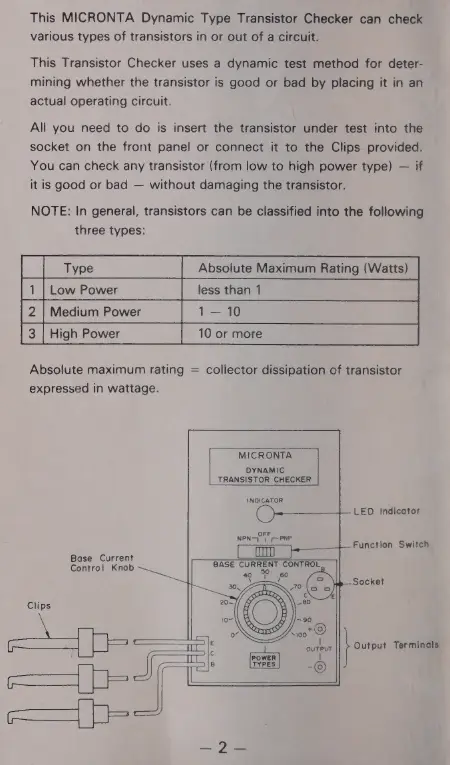

This MICRONTA Dynamic Type Transistor Checker can check
various types of transistors in or out of a circuit.
This Transistor Checker uses a dynamic test method for deter-
mining whether the transistor is good or bad by placing it in an
actual operating circuit.
All you need to do is insert the transistor under test into the
socket on the front panel or connect it to the Clips provided.
You can check any transistor (from low to high power type) — if
itis good or bad — without damaging the transistor.
NOTE: In general, transistors can be classified into the following
three types:
re ee Absolute Maximum Rating (Watts)
Low Power less than 1
1— 10
10 or more
2 | Medium Power
3 | High Power
Absolute maximum rating = collector dissipation of transistor
expressed in wattage.
MICRONTA
DYNAMIC
TRANSISTOR CHECKER
INDICATOR
LED Indicator
FF
NPN" ene
Function Switch
Base Current
Control Knob N
CURRENT CONTROL,
Socket
Clips
Output Terminals
