Micronta 22-185A - Input Jacks and Physical Features

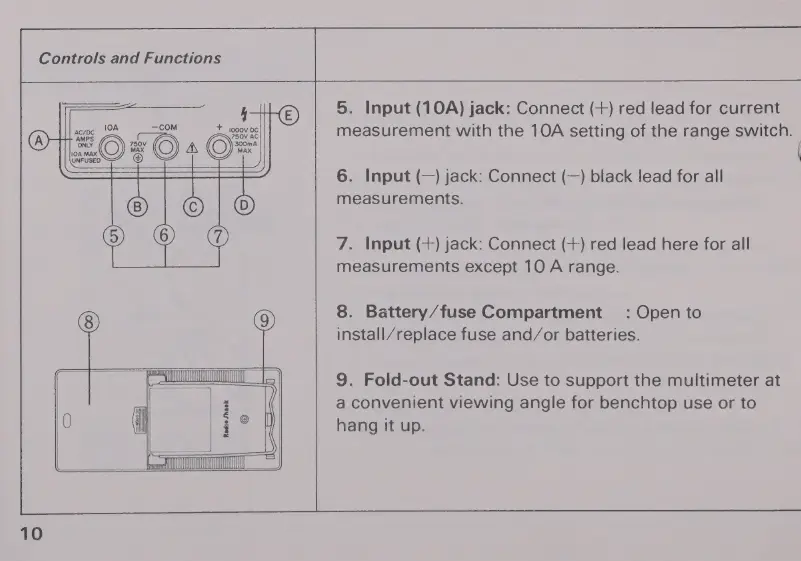

Controls and Functions
5. Input (10A) jack: Connect (+) red lead for current
measurement with the 10A setting of the range switch.
|
000V DC
750V 300mA
OF D Oa
ZO
6. Input (—) jack: Connect (—) black lead for all
measurements.
7. Input (+) jack: Connect (+) red lead here for all
measurements except 10 A range.
8) 9 8. Battery/fuse Compartment : Open to
install/replace fuse and/or batteries.
9. Fold-out Stand: Use to support the multimeter at
a convenient viewing angle for benchtop use or to
hang It up.
10
