Micronta 22-185A - Special Panel Markings; Key Symbol Explanations

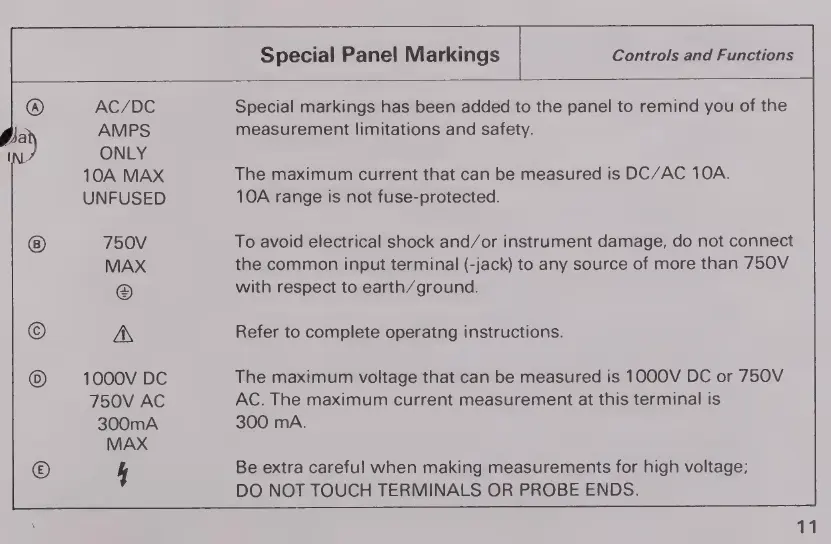

Special Panel Markings Controls and Functions
AC/DC
AMPS
ONLY
10A MAX
UNFUSED
750V
1000V DC
750V AC
300mA
MAX
4
Special markings has been added to the panel to remind you of the
measurement limitations and safety.
The maximum current that can be measured is DC/AC 10A.
10A range is not fuse-protected.
To avoid electrical shock and/or instrument damage, do not connect
the common input terminal (-jack) to any source of more than 750V
with respect to earth/ground.
Refer to complete operatng instructions.
The maximum voltage that can be measured is 1000V DC or 750V
AC. The maximum current measurement at this terminal is
300 mA.
Be extra careful when making measurements for high voltage;
DO NOT TOUCH TERMINALS OR PROBE ENDS.
