Micronta 22-185A - Preparing For Operation; Installing Batteries

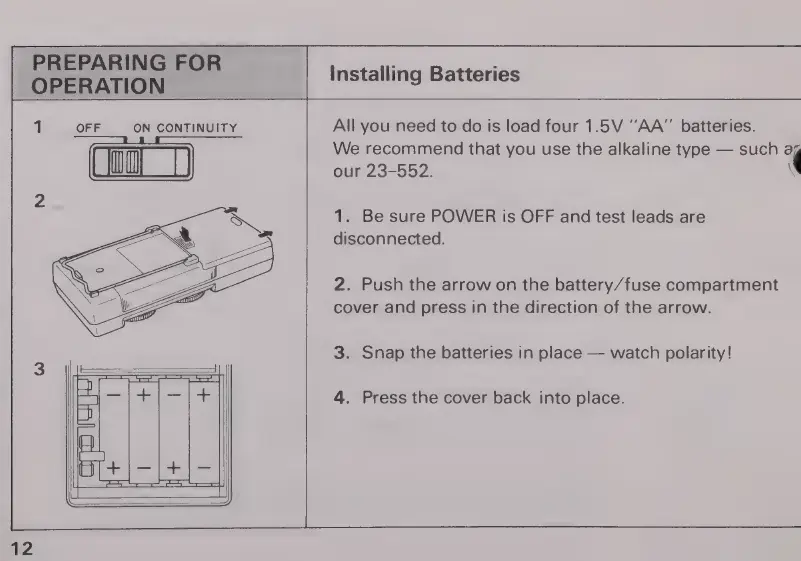

PREPARING FOR
OPERATION
Installing Batteries
12
All you need to do is load four 1.5V “AA” batteries.
We recommend that you use the alkaline type — such U
our 23-552. N
1. Be sure POWER is OFF and test leads are
disconnected.
2. Push the arrow on the battery/fuse compartment
cover and press in the direction of the arrow.
3. Snap the batteries in place — watch polarity!
4. Press the cover back into place.
