Micronta 22-185A - Page 20

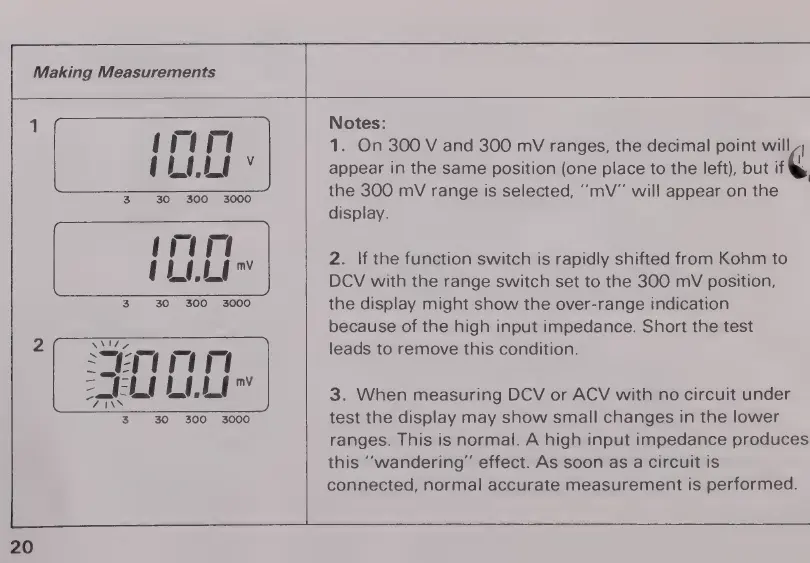

Making Measurements
MAN mV
3 30
300 3000
Notes:
1. On 300 V and 300 mV ranges, the decimal point Willa
appear in the same position (one place to the left), but if
the 300 mV range is selected, “mV” will appear on the
display.
2. If the function switch is rapidly shifted from Kohm to
DCV with the range switch set to the 300 mV position,
the display might show the over-range indication
because of the high input impedance. Short the test
leads to remove this condition.
3. When measuring DCV or ACV with no circuit under
test the display may show small changes in the lower
ranges. This is normal. A high input impedance produces
this “wandering” effect. As soon as a circuit is
connected, normal accurate measurement is performed.
