Making Measurements

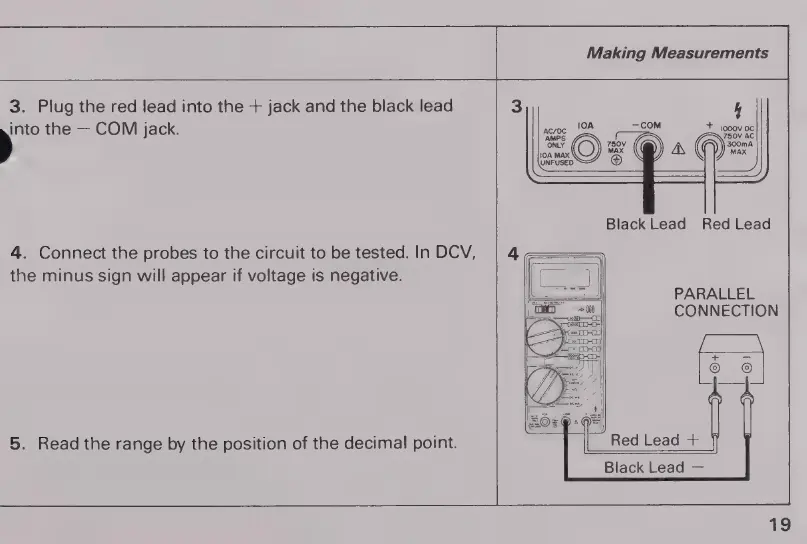

3. Plug the red lead into the + jack and the black lead
p the — COM jack.
4. Connect the probes to the circuit to be tested. In DCV,
the minus sign will appear if voltage is negative.
5. Readthe range by the position of the decimal point.
IOA
O
750V
MAX
©
Black Lead Red Lead
PARALLEL
CONNECTION
©
=
Red Lead +
Black Lead —
19
