Making Measurements

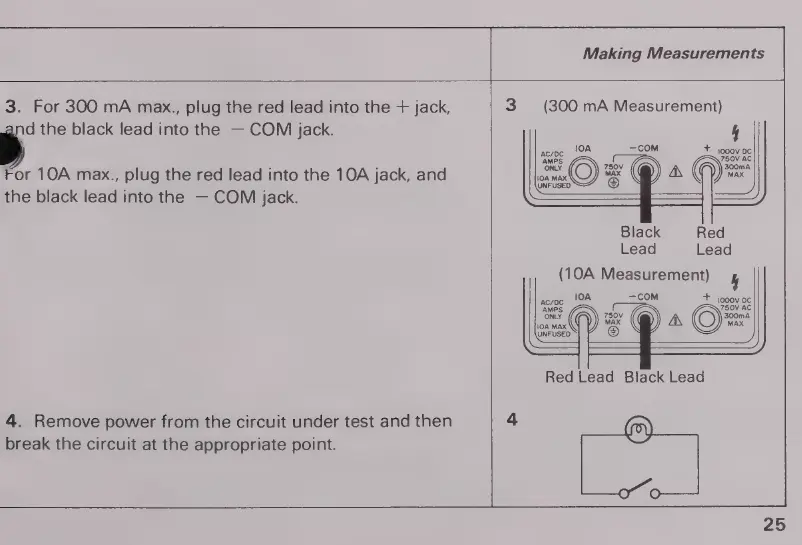

3. For 300 mA max., plug the red lead into the + jack,
a the black lead into the — COM jack.
or 10A max., plug the red lead into the 10A jack, and
the black lead into the — COM jack.
4. Remove power from the circuit under test and then
break the circuit at the appropriate point.
(300 mA Measurement)
10.
750V
ONLY MAX
10A MAX
UNFUSED ©
Black Red
Lead Lead
(10A Measurement) h
ACDC IOA —COM + 1000
ONLY
IOA MAX
UNFUSED
V DC
SOV AC
A 300mA
MAX
Red Lead Black Lead
