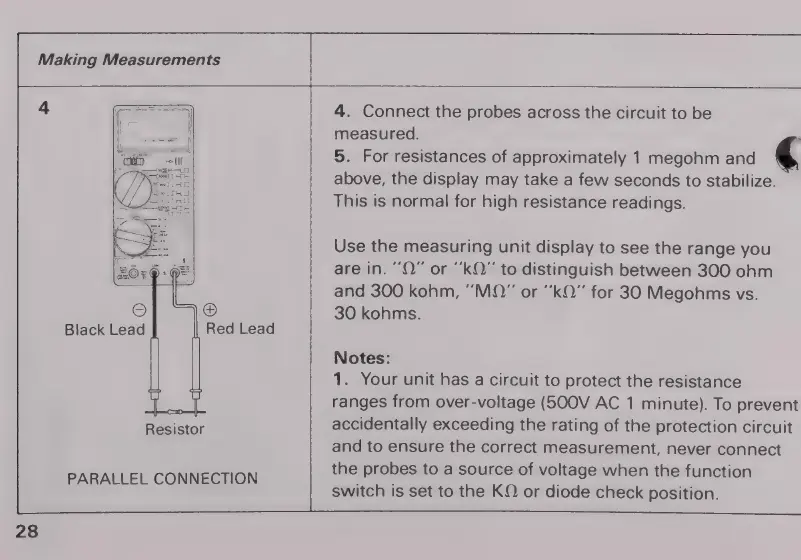

Making
Measurements
4
©
Black
Lead
Red
Lead
Resistor
PARALLEL
CONNECTION
28
4.
Connect
the
probes
across
the
circuit
to
be
measured.
5.
For
resistances
of
approximately
1
megohm
and
above,
the
display
may
take
a
few
seconds
to
stabilize.
This
is
normal
for
high
resistance
readings.
Use
the
measuring
unit
display
to
see
the
range
you
are
in.
“Q”
or
“KQ”
to
distinguish
between
300
ohm
and
300
kohm,
“MQ”
or
“kQ”
for
30
Megohms
vs.
30
kohms.
Notes:
1.
Your
unit
has
a
circuit
to
protect
the
resistance
ranges
from
over-voltage
(500V
AC
1
minute).
To
prevent
accidentally
exceeding
the
rating
of
the
protection
circuit
and
to
ensure
the
correct
measurement,
never
connect
the
probes
to
a
source
of
voltage
when
the
function
switch
is
set
to
the
KO
or
diode
check
position.
