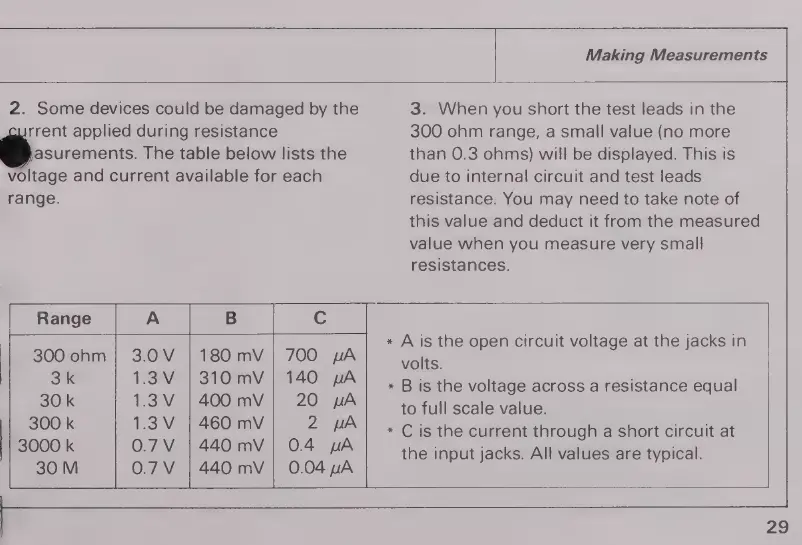

Micronta 22-185A - Page 29

Making Measurements
2. Some devices could be damaged by the
rrent applied during resistance
O surements The table below lists the
Voltage and current available for each
range.
3. When you short the test leads in the
300 ohm range, a small value (no more
than 0.3 ohms) will be displayed. This is
due to internal circuit and test leads
resistance. You may need to take note of
this value and deduct it from the measured
value when you measure very small
resistances.
x A is the open circuit voltage at the jacks in
volts.
x B is the voltage across a resistance equal
to full scale value.
* C is the current through a short circuit at
the input jacks. All values are typical.
