Page #4 background image

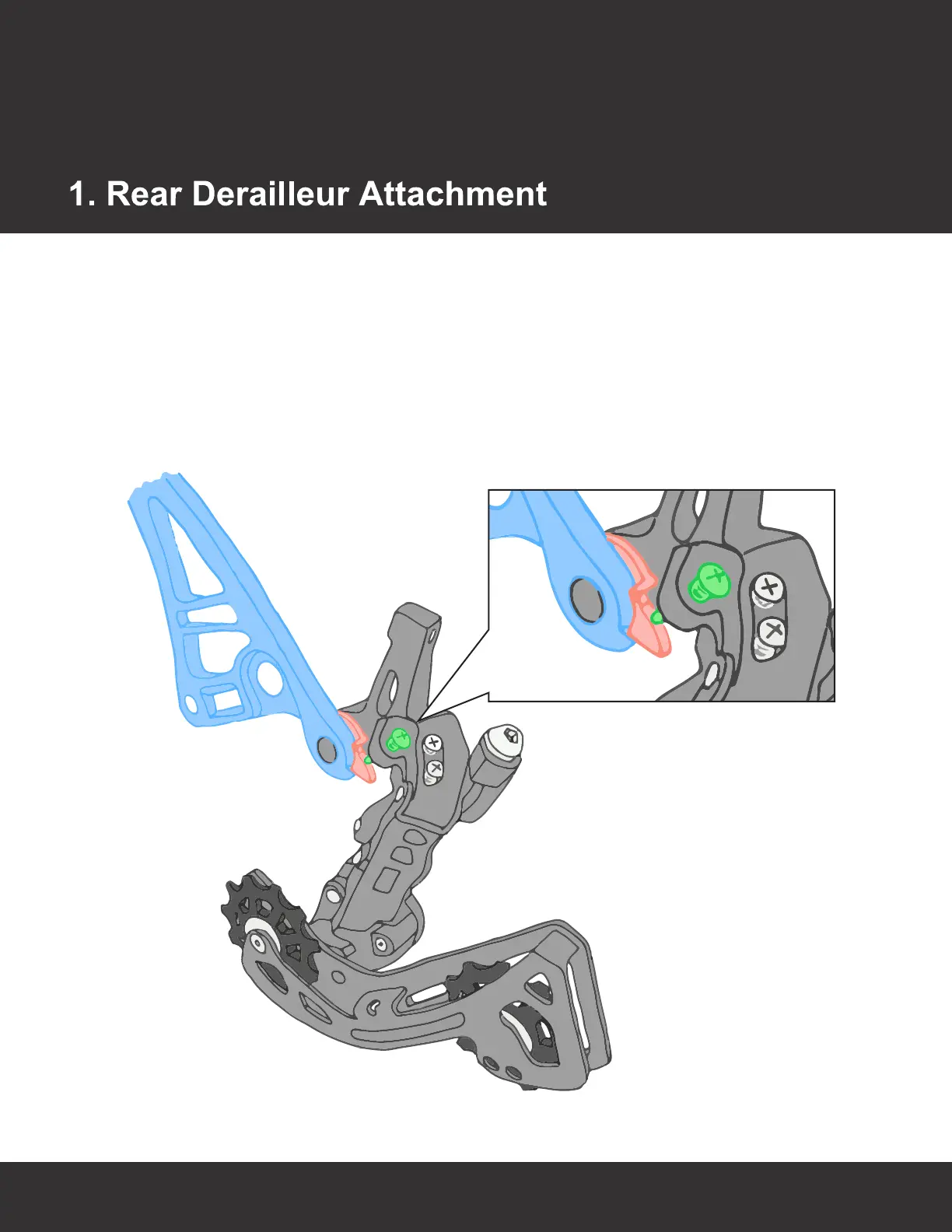

Attach rear derailleur to the bike. Make sure the B-tension washer is
above the derailleur dropout and engages correctly with the B-tension
adjustment screw.
3
Part I
Question and Answer IconNeed help?

Do you have a question about the microSHIFT ADVENT 1 Series and is the answer not in the manual?

microSHIFT ADVENT 1 Series Specifications

General IconGeneral
BrandmicroSHIFT
ModelADVENT 1 Series
CategoryBicycle Accessories
LanguageEnglish

Summary

Tools and Supplies

Rear Derailleur Attachment

Rear Derailleur Attachment - Part I

Attach rear derailleur to bike, ensuring B-tension washer is correctly positioned on dropout.

Rear Derailleur Attachment - Part II

Tighten derailleur fixing bolt to 8-10 Nm using a 5mm hex bit torque wrench.

H-Limit Screw Adjustment

H-Limit Screw Adjustment

Adjust high-limit screw with screwdriver for guide pulley alignment with smallest cog's outer edge.

Proper Cable Housing

Proper Cable Housing - Part I

Consult frame manufacturer guidelines for routing. Avoid excessive curves or slack.

Cable Installation

Cable Installation - Part I

Shift to highest gear using the index trigger lever before installing cable.

Cable Installation - Part II

Route cable through shifter, housing, and rear derailleur.

Cable Installation - Part III

Route cable under fixing bolt/washer, ensure it's in groove. Tighten to 5-7 Nm.

Cable Installation - Part IV

Cut the cable and attach the cable end.

Disable Clutch

Disable Clutch

Move the clutch switch to the open circle position to disable the clutch.

Chain Sizing

Chain Sizing - Part I (Full Suspension Bike Only)

Release rear shock air or remove shock to properly size chain on full suspension bikes.

Chain Sizing - Part II (Full Suspension Bike Only)

Measure distance between bottom bracket and rear axle at furthest point for full suspension bikes.

Chain Sizing - Part III

Wrap chain around chainring and largest cog. Add two full inner links from overlap point and cut.

Chain Sizing - Part IV

For non-quick connector chains: add two inner links and one outer plate from overlap point and cut.

Chain Sizing - Part V

Cut the chain using a chain breaker tool.

Chain Installation

Chain Installation

Route chain over smallest cog, front of guide pulley, behind prevention plate, and behind tension pulley. Connect chain.

Shifting Adjustment

Shifting Adjustment - Part I (Clutch Rear Derailleur Only)

Enable clutch by moving switch to closed circle position before adjusting shifting.

Shifting Adjustment - Part II

Shift to 2nd cog. Turn shifter barrel adjuster counter-clockwise if chain doesn't move.

Shifting Adjustment - Part III

Adjust barrel adjuster counter-clockwise for slow shifts to larger cogs, clockwise for smaller cogs.

L-Limit Screw Adjustment

L-Limit Screw Adjustment - Part I

Shift to largest cog. Push derailleur past cog; adjust low limit screw if it moves past.

L-Limit Screw Adjustment - Part II

Tighten low limit screw until derailleur cannot move past largest cog. Loosen if slow to shift.

B-Tension Screw Adjustment

B-Tension Screw Adjustment - Part I

With chain in largest cog, adjust B-tension screw for 5-7mm gap between guide pulley and largest cog teeth.
