15 M1196211

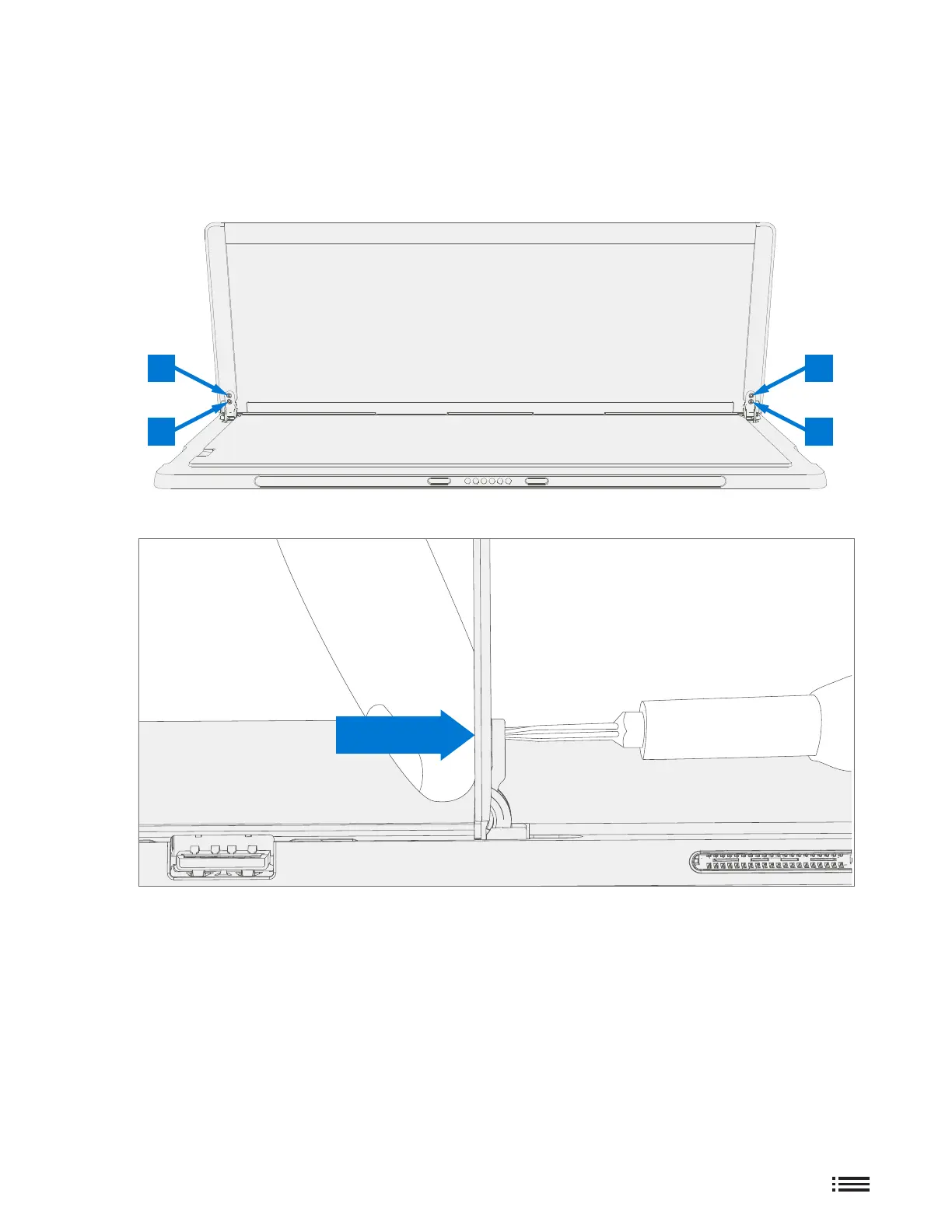

4. Install hinge screws – Flip the kickstand up to approximately 90° such that the threaded holes of the
kickstand align with the mounting holes of the hinge. Install the hinge screws in the order shown below with
the 3IP (Torx-Plus) driver. Ensure screws do not fall into the hinge opening. Use your nger to hold the back
of the kickstand behind the hinge while installing the screws until they are fully seated. Verify the kickstand is
properly aligned and seated in the hinges, then tighten the screws an additional ~quarter turn (~90°).
.
5. Final inspection Kickstand installation – Fold the kickstand down and peel off protective plastic from the
kickstand and logo if present. Verify the side edges of the kickstand are aligned with the midframe walls
and that there are no obvious steps/gaps between the kickstand and the IBC. Wipe the device thoroughly
(including under the kickstand) with the microber cloth to remove all ngerprints.
2
4
1
3
HOLD
To Next Page
