Microtec UHP-15MS - Circuit Diagram

Plain Heat Press Manual
- 6 -
long enough / or poor quality transfer paper.
4. If transfer paper stick to the object after transfer: the temperature is too high/ or poor quality printing ink.

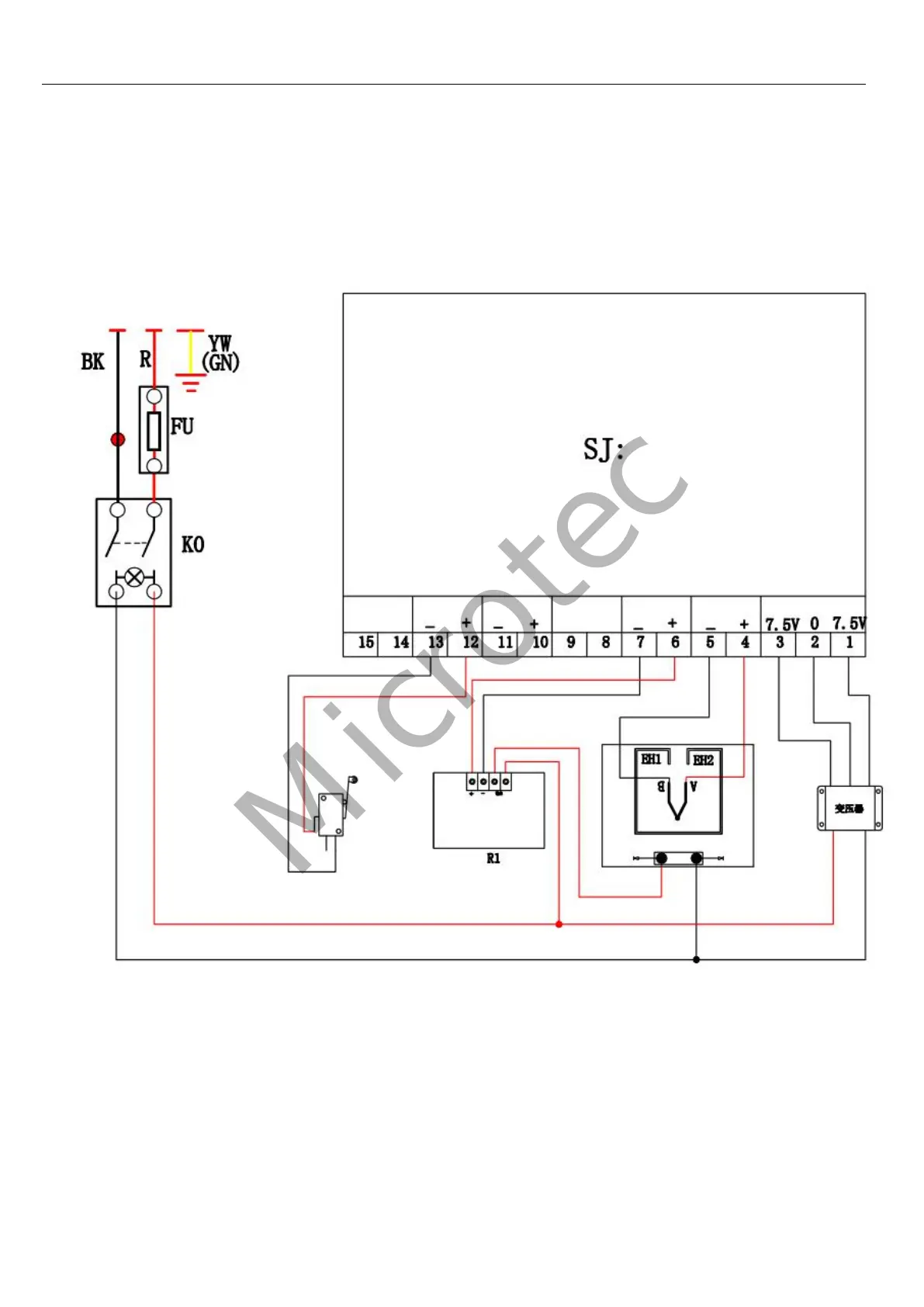

VI. Circuit Diagram
K
0
: Power Switch
FU:Fuse T: Transformer
EH
1
EH
2
:Heating Pipe
SJ: Digital Controller
R1:Relay
Microtec
