22 23Quick Start Guide500 SERIES MICROPHONE PREAMPLIFIER 502
Module Connector Pin-Outs
Pin Number Description
1Chassis GND
2 Output + (hot)
3N/A
4 Output – (cold)
5Audio GND
6N/A
7N/A
8 Input – (cold)
9N/A
10 Input + (hot)
11 N/A
12 PSU +16 V
13 PSU GND (0 V)
14 PSU –16 V
15 PSU +48 V phantom power
Notes
L6 and L10 rackmount chassis XLR connections are wired
pin 1 = audio GND, pin 2 = + (hot), pin 3 – (cold)

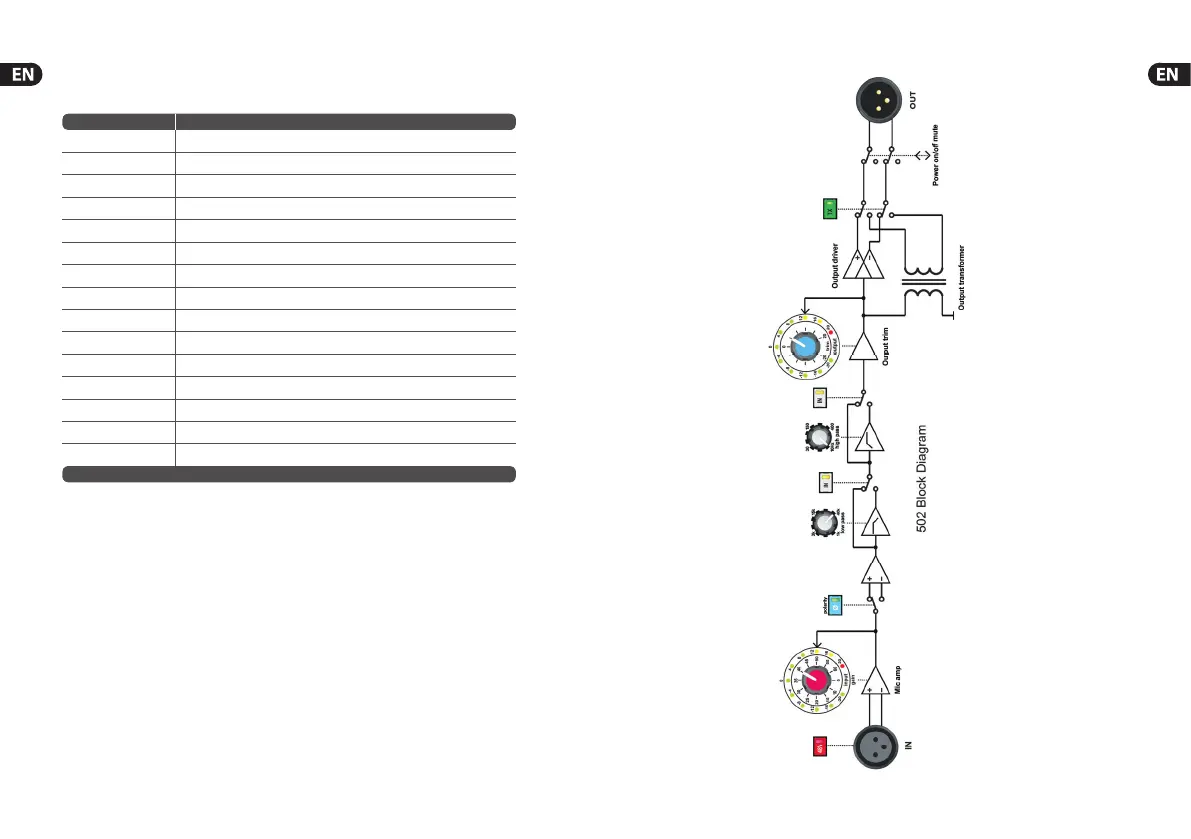

Block Diagram
To Next Page
