6 MIDA S DL16 User Manual 7 MIDA S DL16 User Manual

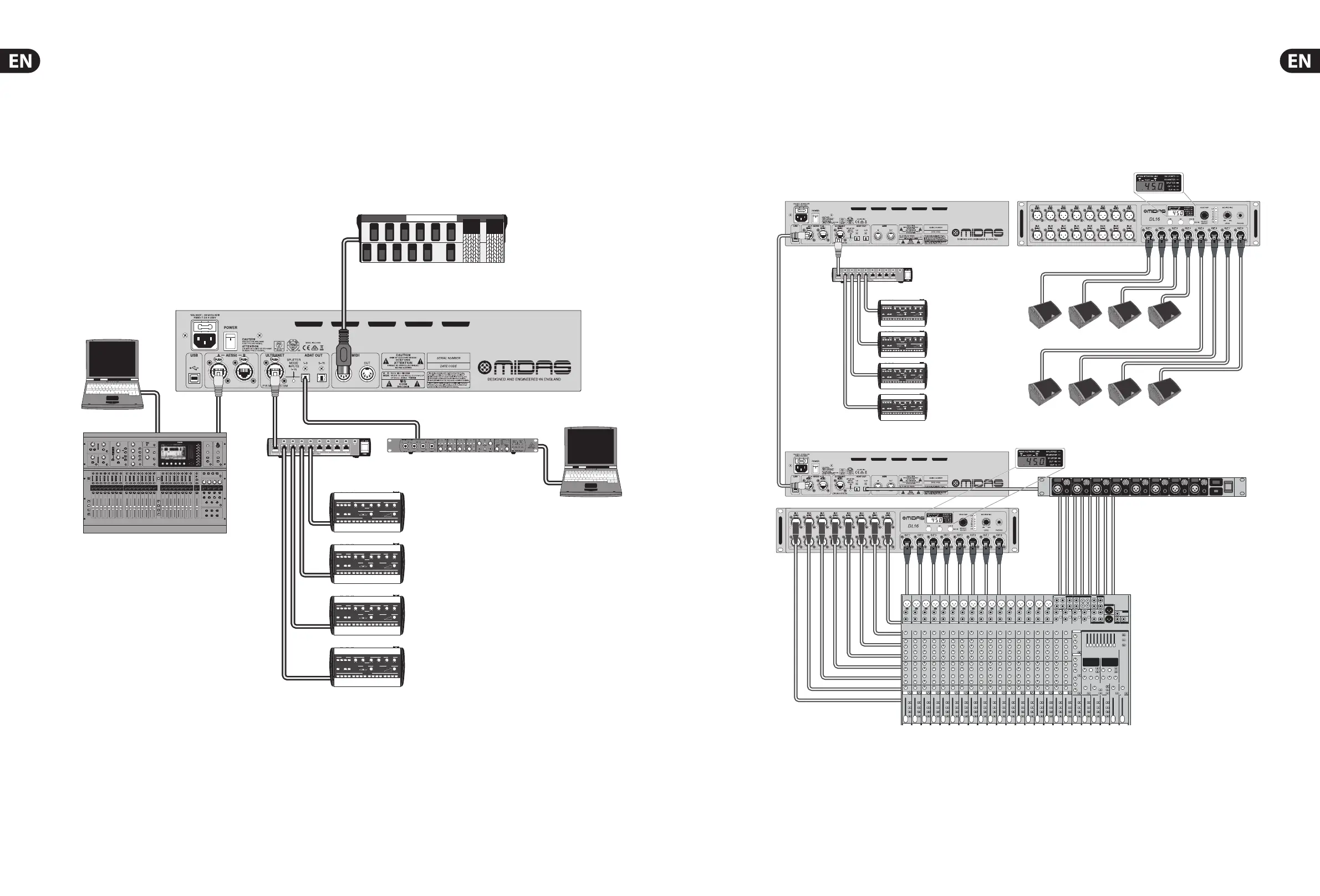

DL16 common connections, rear panel DL16 as standalone snake
Audio Interface with ADAT inputs
MIDI footswitch
P16-D
P16-M
M32
P16-D
ADA8200
On-stage slave DL16 in Standard mode
FOH DL16 in Snake Master mode
Rear panel view
Front panel view
Sends to stage
Out 9-16 (via ADA8200)Out 1-8
(via DL16)
to mixer inputs
Active stage monitors
Active stage monitors
P16-M
To Next Page
