1.4 Location of heat pump installation
The unit will perform well on any location provided three factors are present:
1. Fresh air 2. Electricity 3. Pool filter piping
The unit may be installed virtually anywhere outdoors providing minimum distance requirements are met
with respect to other objects (see diagram below).For indoor pools please consult your installer. If the
unit is placed in a windy area, no problems occur with e.g. the pilot light, as oppo-sed to what is often the
case with gas heaters.
Do not place the unit in an enclosed area with a limited air volume where the unit'sAttention:
discharged air will be re-circulatedor near shrubs that could block the air inlet. These locati-
ons deny the unit a continuous fresh air supply, which reduces its efficiency and may prevent a-
dequate heat yield.
See diagram below for minimum required distances.
Cautions
√Do not put your hands or any other object into the air outlet and fan. It could damage the heat pump and
cause injuries.
In case any abnormality was found in the heat pump, please cut off the power at once and contact a√
professional technician.
It is strongly suggested to place a guard around the machine to keep children away from the heat pump.√
4
Figure 1-3
Model:Horizontal Unit

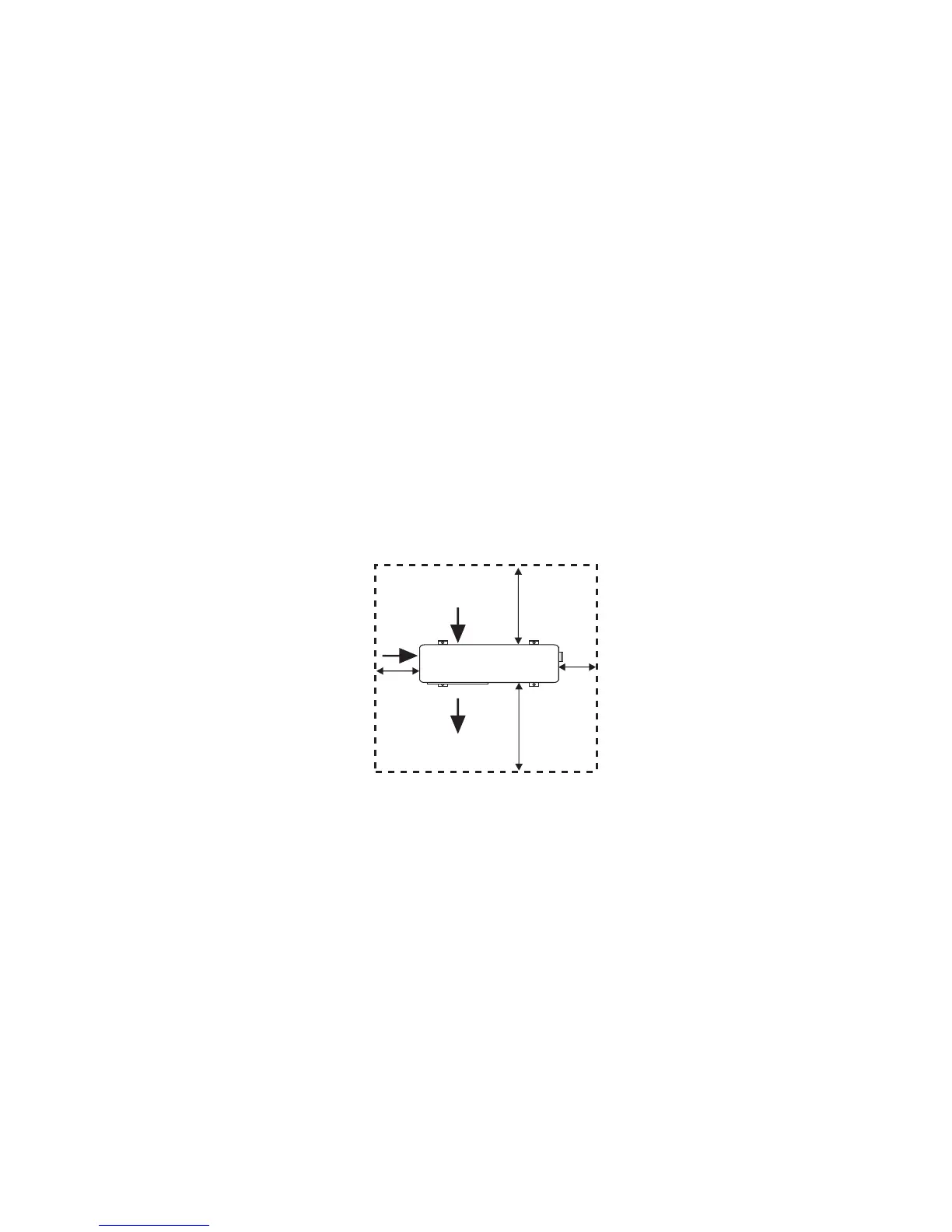

Free space requirement for the horizontal heat pump
Not less than 500mm
Air in
Not less than 500mm from the top
Air in
Not less
than 500mm
Not less than 2000mm
Air out
Not less
than 500mm
