Midea 09 User Manual

12

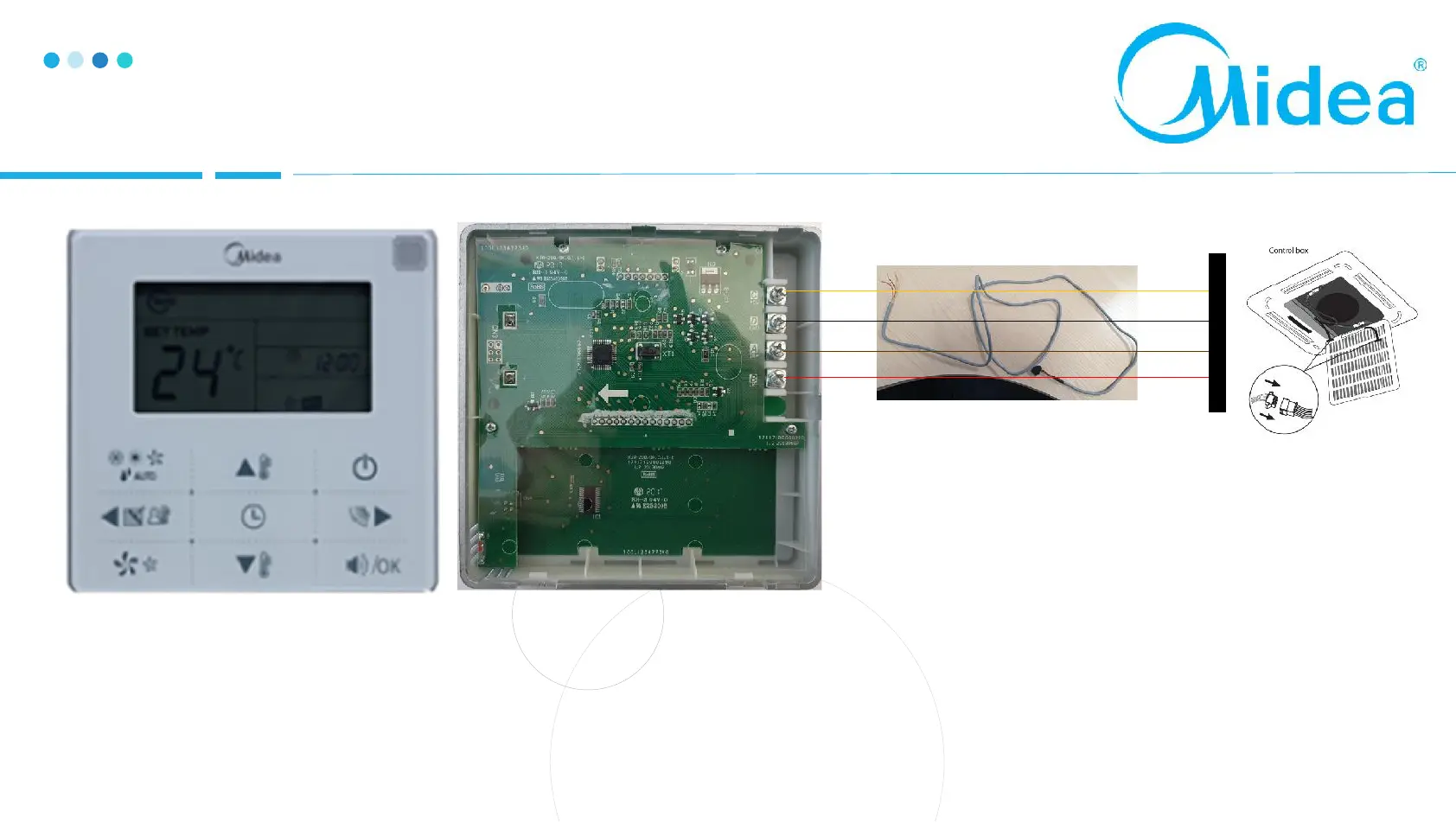

Installation – Controllers – KJR29B (one to one)
• Comes with a 6m cable
• Jack plugged one side/made off the other
• Jack plugs into fascia/display board
• Other end is made off and wired into the
terminals
• A&B – Comms
• C&D – 5v Power
A – Brown/Blue
B – Red
C- Yellow
D - Black

Midea 09 Specifications

General

Brand	Midea
Model	09
Category	Air Conditioner
Language	English
