Midea AC120-19ARB User Manual

5
Circuit Diagram

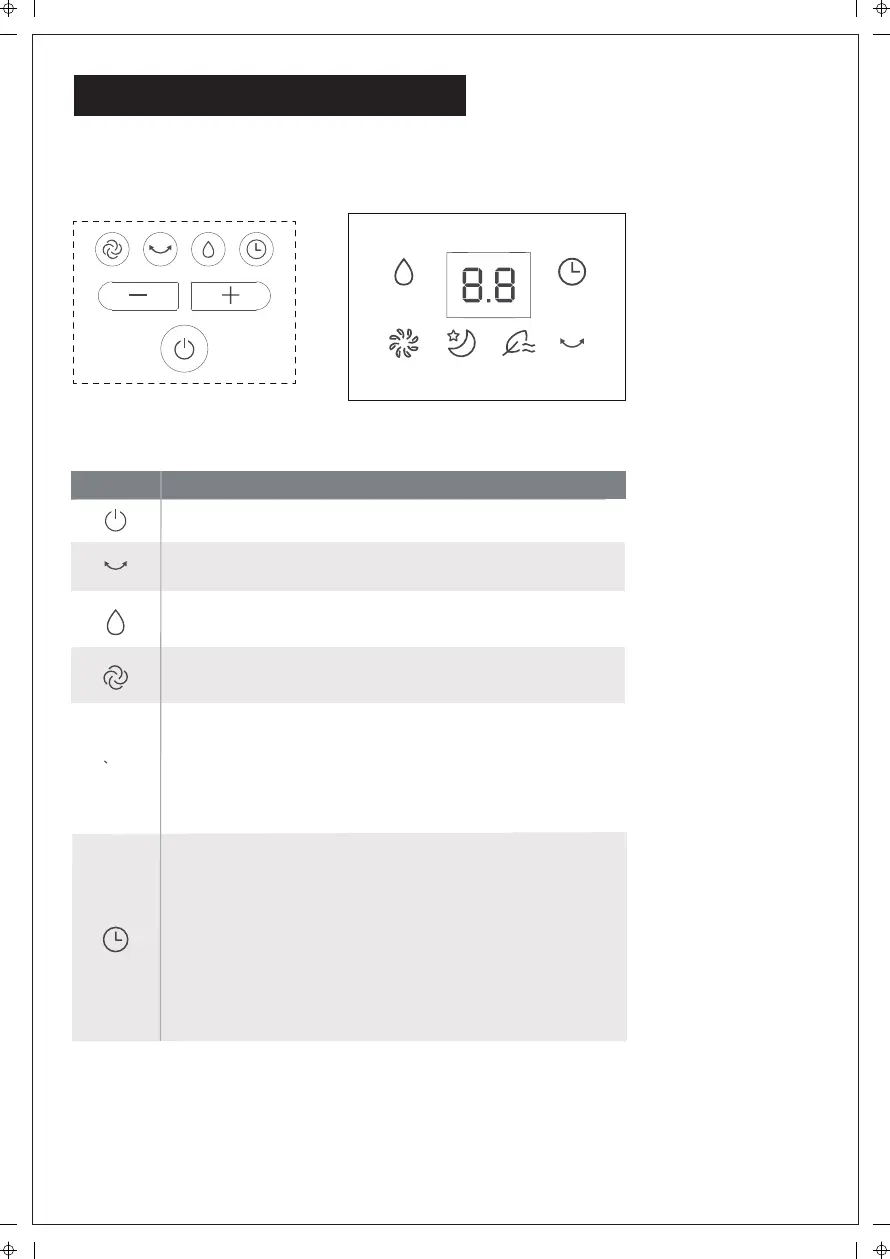

Operating Manual for Machine Body
Machine body key Display panel
Product start or stop.
Key
Function description
- +
Touch the swinging wind key to start or stop swinging wind.
Short press in the start state to start or stop humidification. In the dry or
hot weather, start the humidification function to have a better
experience.
Three wind classes available: Normal wind (level 4, normal wind indicator
light is lit up), sleep wind (level 2, sleep wind indicator light is lit up), natural
wind (level 2, natural wind indicator light is lit up).
Short press in the standby state. If the state is set at the scheduled start time,
the scheduled startup time can be reduced / increased.
Short press in the start state. If the state is set at the timing shutdown time,
the timing shutdown time can be reduced / increased. If the state is not set at
the timing/reservation time, the wind speed can be reduced / increased.
Note: When timing/reservation, press this key, the time will be reduced/in-
creased by 0.5 hours every time for 0-3 hours, and 1 hour for 3-10 hours.
When adjusting the wind
speed, short press this key to increase or decrease
wind speed by 1 level every time.
In the start state, press this key, the display will flash. Set the time, and then
the display flashes 3 times, this is, the timing is completed.
In the standby state, press this key, the display will flash. Set the time, and
then the display flashes 3 times, this is, the reservation is completed.
After pressing this key, the wind class mode and class can be set at the
same time.
Cancel timed operation:
Cancel timing in shutdown state: when timing has been set, press the timing
button (the pattern on the screen will flicker at this time), and then long press
the timing button 2S within 6S to cancel timing.
Cancel timing in the startup state: when timing has been set, press the timing
button (the pattern on the screen will flicker at this time), and press the timing
button 2S again immediately to cancel timing.

Midea AC120-19ARB Specifications

General

Timer	Yes
Display	LED
Placement	Floor
Control type	Touch
Product color	Black, Grey
Auto oscillating	No
Number of speeds	3
Water tank capacity	7 L
Timer duration (maximum)	24 h
AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 Hz
Power consumption (typical)	65 W
Package type	Box
Package depth	349 mm
Package width	403 mm
Package height	1126 mm
Package weight	13500 g

Weight and Dimensions

Depth	270 mm
Width	345 mm
Height	1050 mm
Weight	10500 g
