Midea ACE-09HRFN8 IN User Manual

Prepare refrigerant piping
Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit. You have four
options for the exit direction of the piping. The
description of the piping angle below for details.
Four chooses to exit
the piping
connect the indoor unit’s refrigerant piping to
the connective piping that will join the indoor
and outdoor units. Refer to the Refrigerant
Piping Connection section of this manual for
detailed instructions.
CAUTION
Be extremely careful not to dent or damage the piping while bending them
away from the unit. Any dents in the piping will aect the unit’s performance.

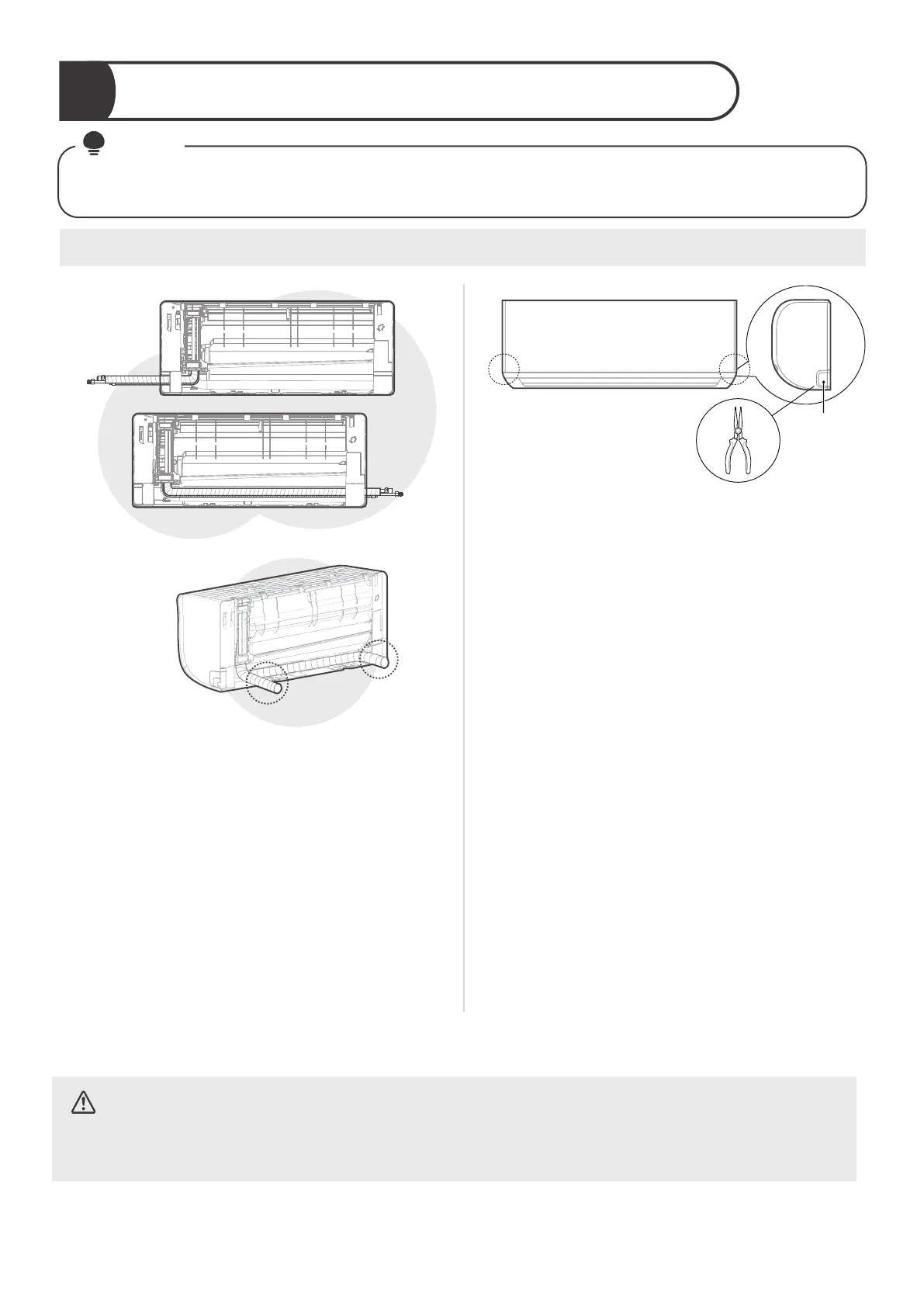

Install refrigerant pipe & drain hose
3
13
Step 1：
Step 3：
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare
the piping before passing it through the hole in the wall.
NOTE
Left-hand
side
Left rear
Right rear
Right-hand
side
If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit.Use
needle nose pliers if the plastic panel is too
dicult to remove by hand.
Knock-out
Panel
Knock-out Panel on
the left & right side
Step 2：
needle nose pliers
NOTE：If existing connective piping is
already embedded in the wall, proceed directly
to the Connect Drain Hose step.
NOTE：Groove has been made in the
knock-out panel in order to cut it conveniently.
The size of the slot is determined by the
diameter of piping.
