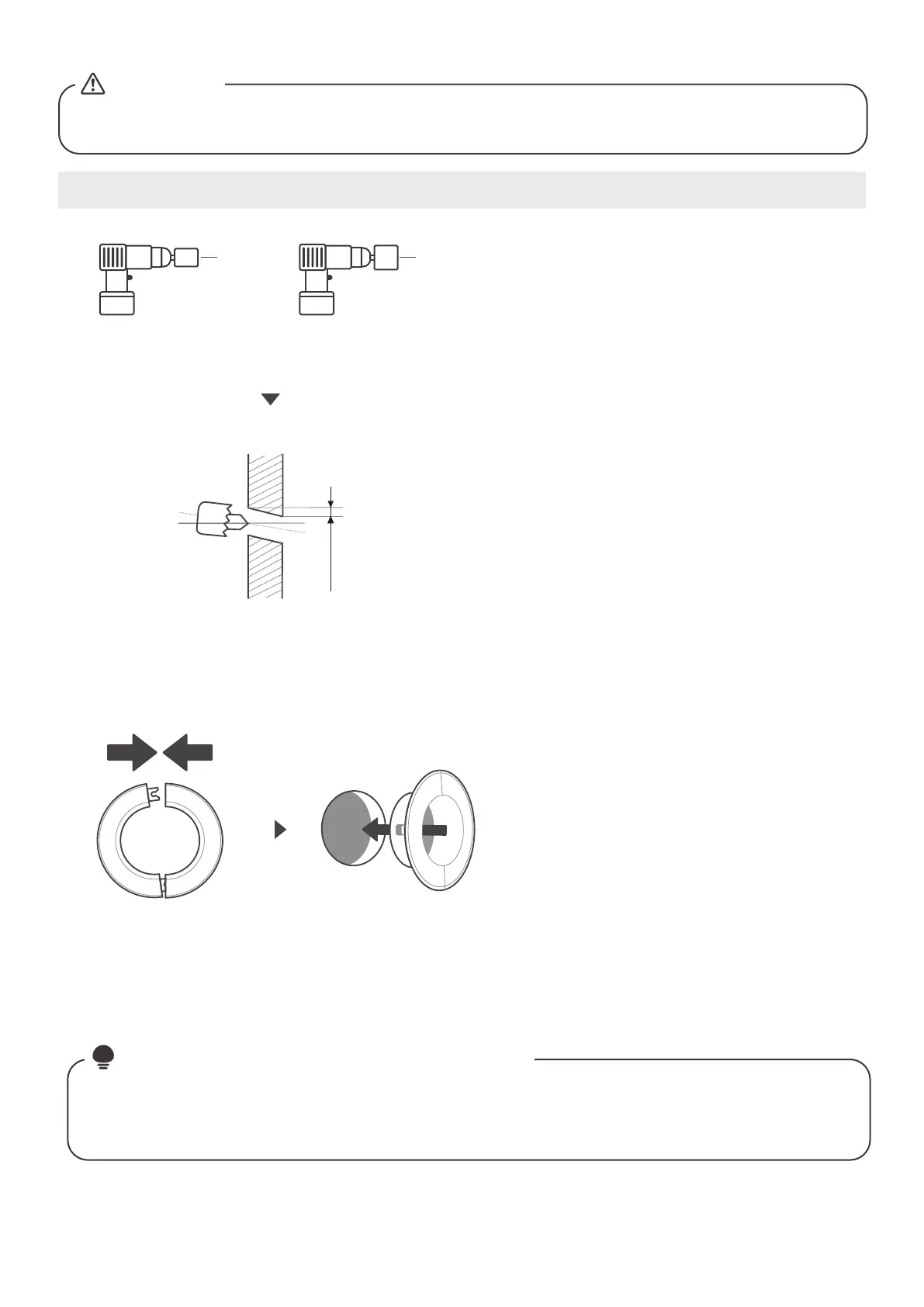

Drill wall hole
Using a 65mm (2.5") or 90mm(3.54")
core drill(depending on models ), drill a
hole in the wall. Make sure that the hole
is drilled at a slight downward angle, so
that the outdoor end of the hole is lower
than the indoor end by about 5mm to
7mm (3/16-5/16"). This will ensure
proper water drainage.
Place the protective wall cu in the hole.
This protects the edges of the hole and
will help seal it when you finish the
installation process.
12
When drilling the wall hole, make sure to avoid wires, plumbing, and other
sensitive components.
CAUTION
90mm
(3-9/16")
65mm
(2-1/2")
Step 1：
Step 2：
Using a 65mm (2-1/2") or 90mm(3-9/16")
core drill(depending on models )
Wall
Indoor
Outdoor
5-7mm
(3/16-5/16")
Drill the wall hole
Place the protective wall cu in the hole.
wall hole.
the protective
wall cu
If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in
the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by
tightening the screws directly into the clip anchors.
NOTE
: FOR CONCRETE OR BRICK WALLS
