‐i   AtomBSeriesVRF50/60Hz

  11

Part2–ComponentLayoutandRefrigerantCircuits

2 RefrigerantFlowDiagrams

Coolingoperation

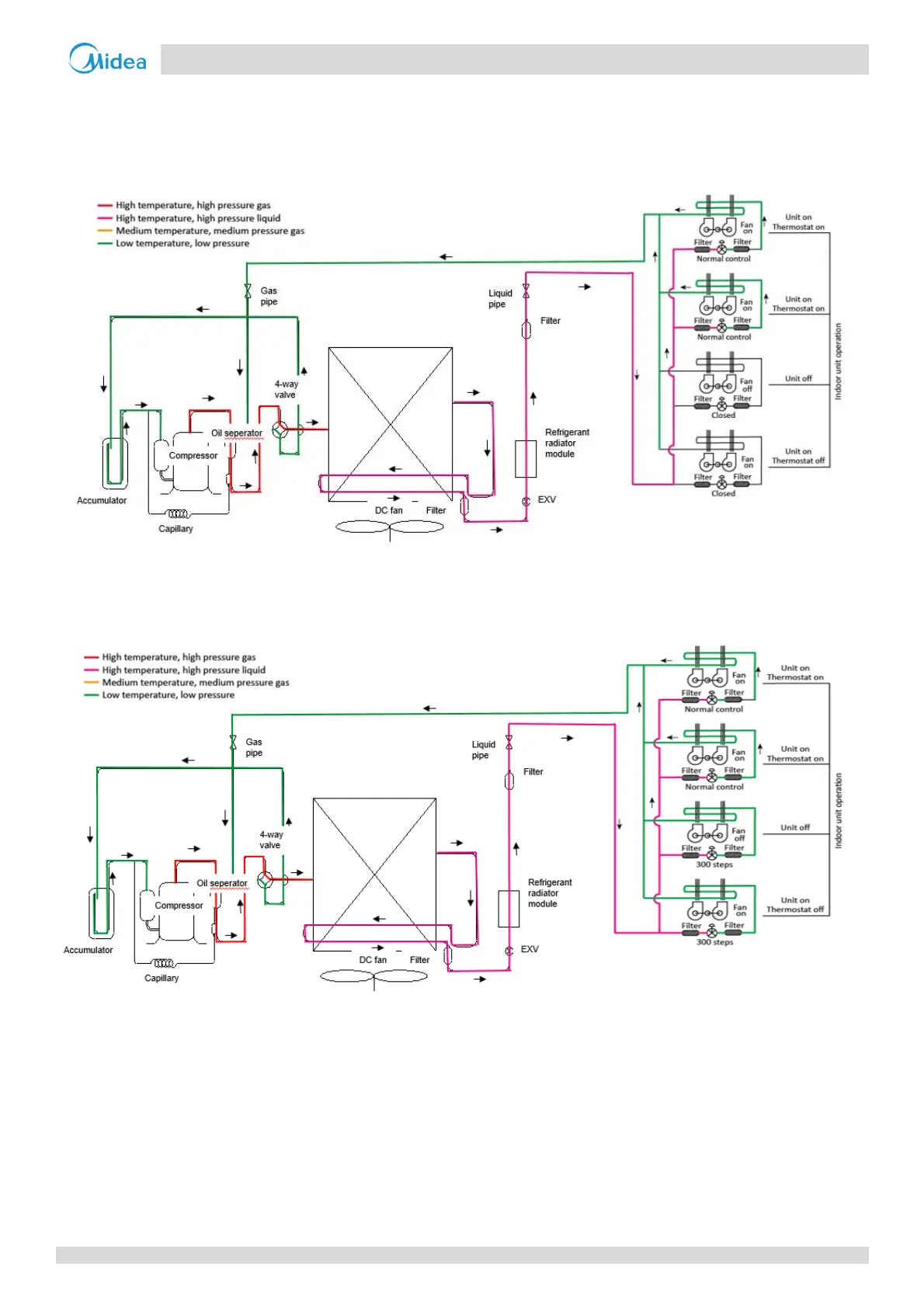

Figure2‐2.1:28/36/42/48/56/60modelsrefrigerantflowduringcoolingoperation



Oilreturnoperationincoolingmode

Figure2‐2.4:28/36/42/48/56/60modelsrefrigerantflowduringoilreturnoperationincoolingmode




