AtomBSeriesVRF50/60Hz  

12  

MideaAtomBSeriesServiceManual

Heatingoperation

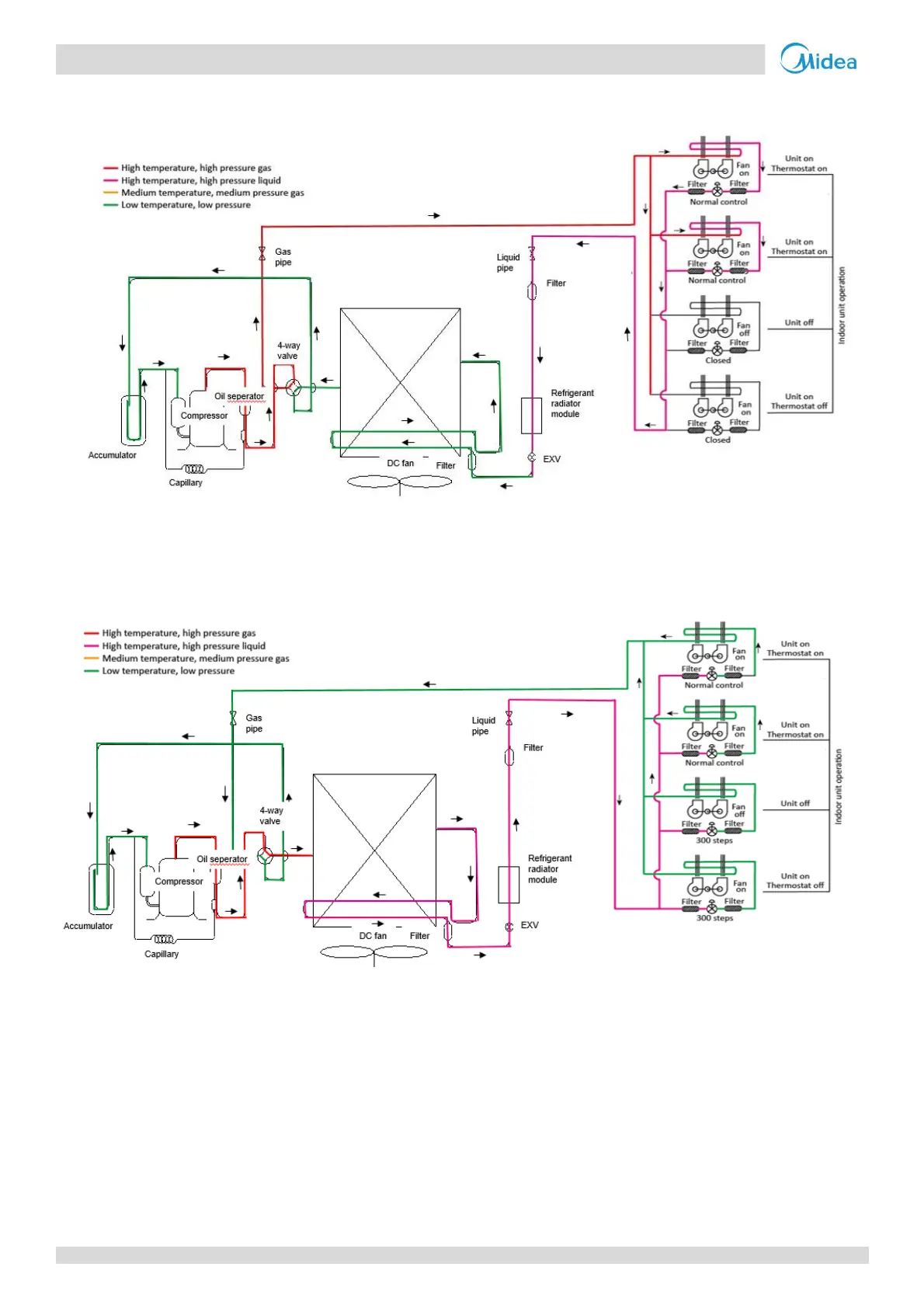

Figure2‐2.7:28/36/42/48/56/60modelsrefrigerantflowduringheatingoperation



Oilreturnoperationinheatingmode

Figure2‐2.10:28/36/42/48/56/60modelsrefrigerantflowduringoilreturnoperationinheatingmode




