1 Outdoor Unit Electric Control Box Layout

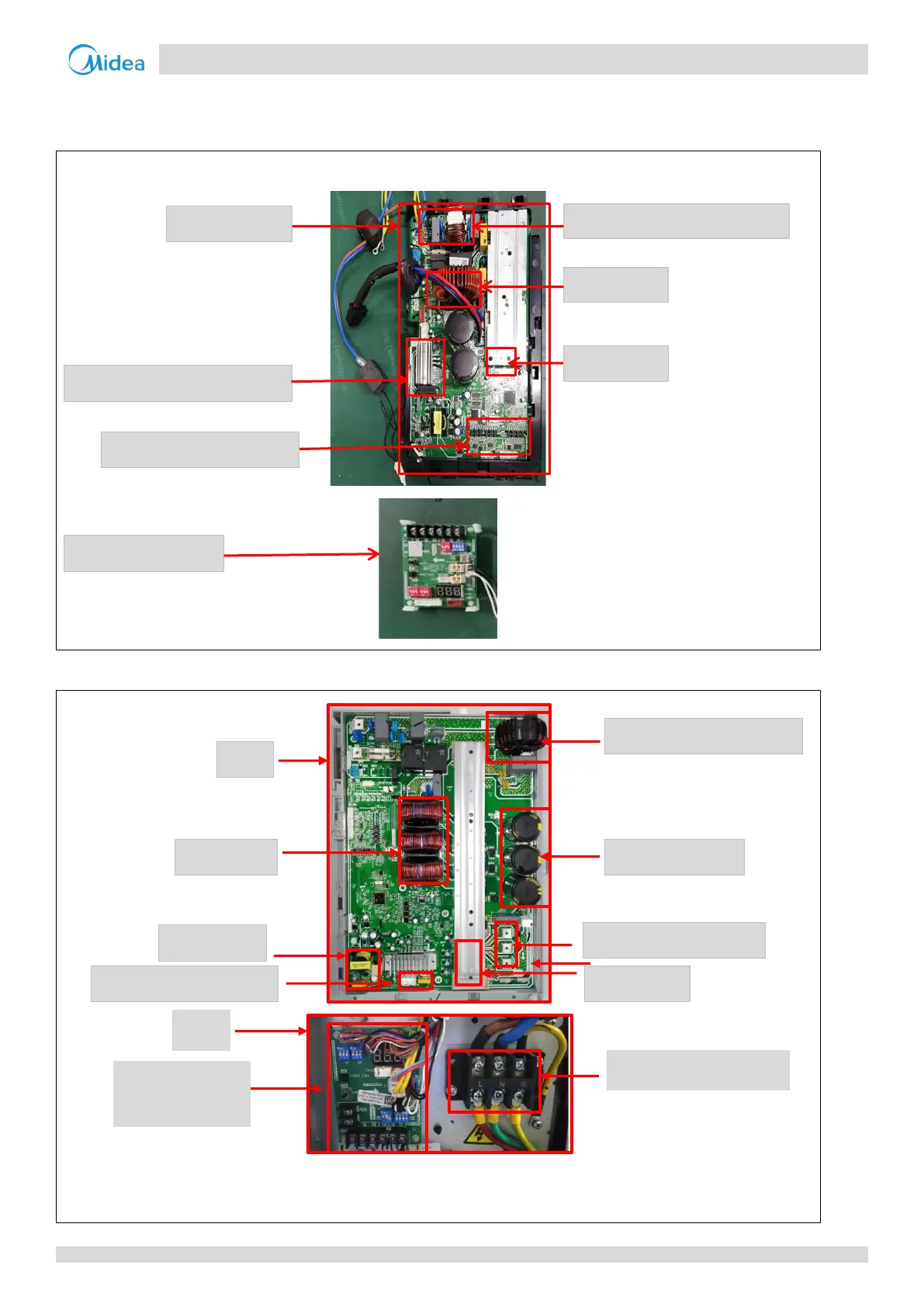

Figure 5-1.1: Front view of 28 model electric control box
Figure 5-1.2: Front view of 36/42/48/56 model electric control box
Module board
Power input and power filter
PFC module
DC fan motor control module
Common mode inductor
Main control board
Electric capacitor
Compressor connector
IPM module
Switching power supply
DC fan port
PFC module
Power supply terminals
IPM module
AP1
AP2
Communication
converter board
Output control assembly
