Service Manual_2018-V1.0
24

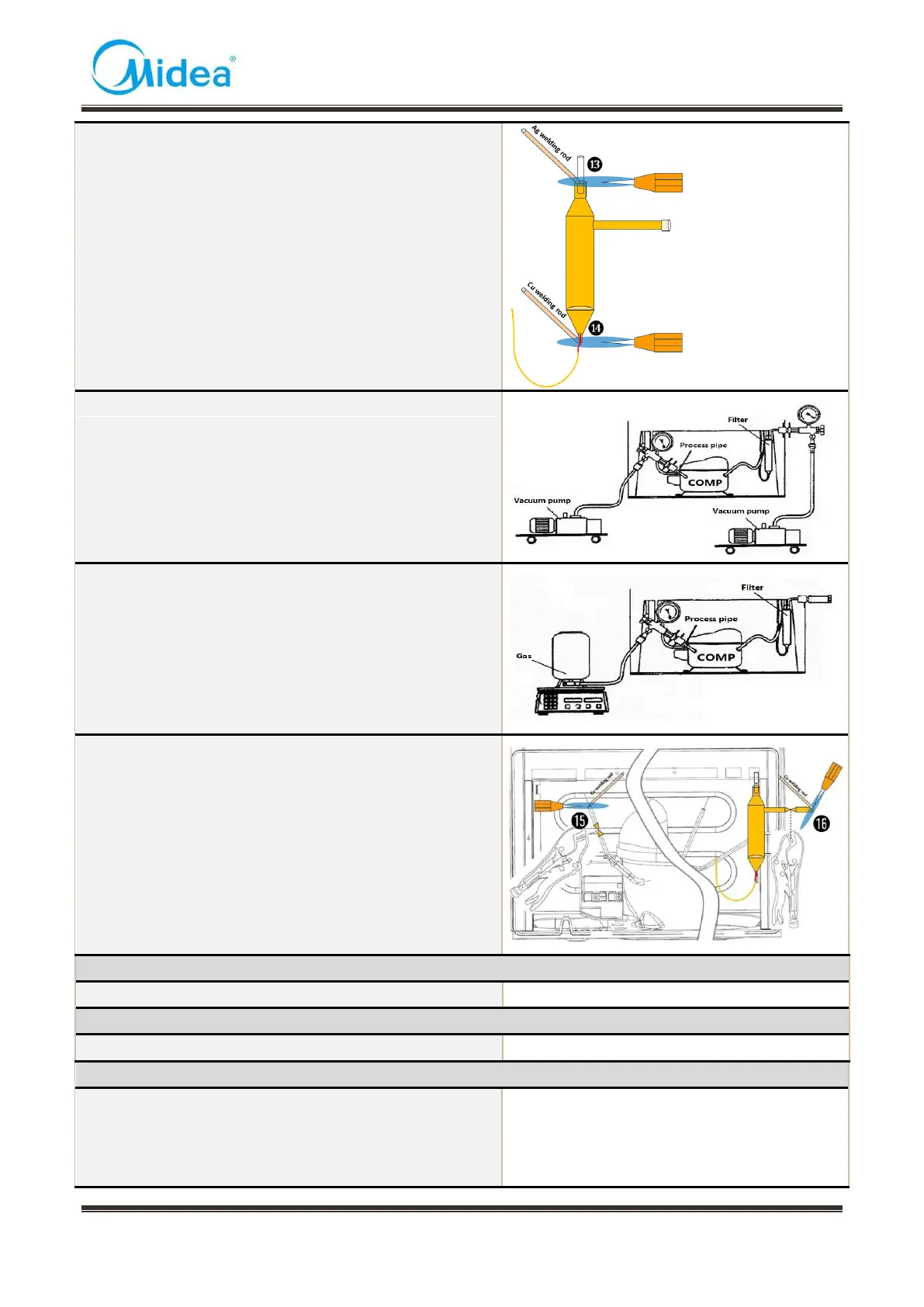

12）Replace the filter, Cu-Fe tubes welding ⓭ used Ag
welding rod, Cu-Cu tubes welding⓮ used Cu welding
rod.
13）Vacuum system,The degree of vacuum below 6Pa.
14）Perfusion refrigerant.
15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Condenser fan motor
Condenser fan motor
None
Standby condenser
Standby condenser
None
Piping system in the compressor case
❶ Condenser-1(in)
❷ Drier
❸ Capillary Tube
❹ Transition pipe
❻ Capacitor❼ Compressor cover❽
Compressor❾ drain tray❿
Condenser-2(out)
⓫ Suction conection Pipe
