Midea BMF No Frost Series - Circuit Diagram

Service Manual_2020-V3.0
20
冷冻室灯 Lights inside the freezing
chamber
None
其它灯 Others Lights
None
冰箱灯开关 Switch of the light
■机械 Mechanical switch
□磁控 Magnetism control switch
化霜部件 Defrosting parts
化霜传感器 Defrosting sensor
型号：NTC B3839 ( B5/25=3839K±2% )
冷冻室化霜熔断器 Fuse in freezing
chamber
230V、77(0 ～ -5) ℃
冷冻室化霜加热器 Defrost heater in
freezing chamber
230V、170W

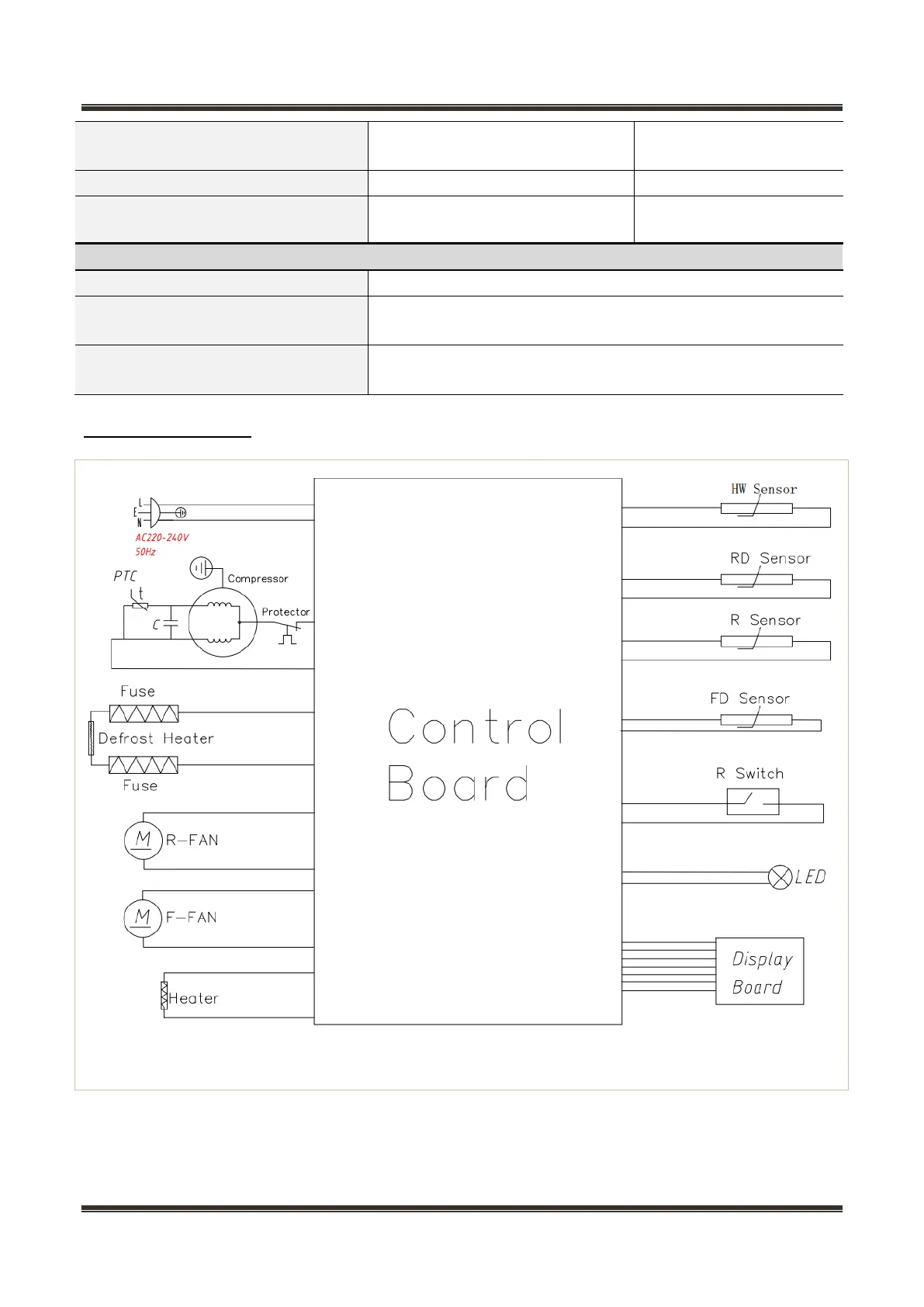

5.2 Circuit diagram
F: Freezer R: Refrigerator RD: Refrigerator defrost FD: Freezer defrost
HW: Ambient temperature
