Fig.3.3
Click “Add” in IP address bar to add an IP address which is in the same segment as
“192.168.1.200”, e.g., IP: 192.168.1.209ˈsubnet mask 255.255.255.0ˈand click “OK”
3.2 Configuration

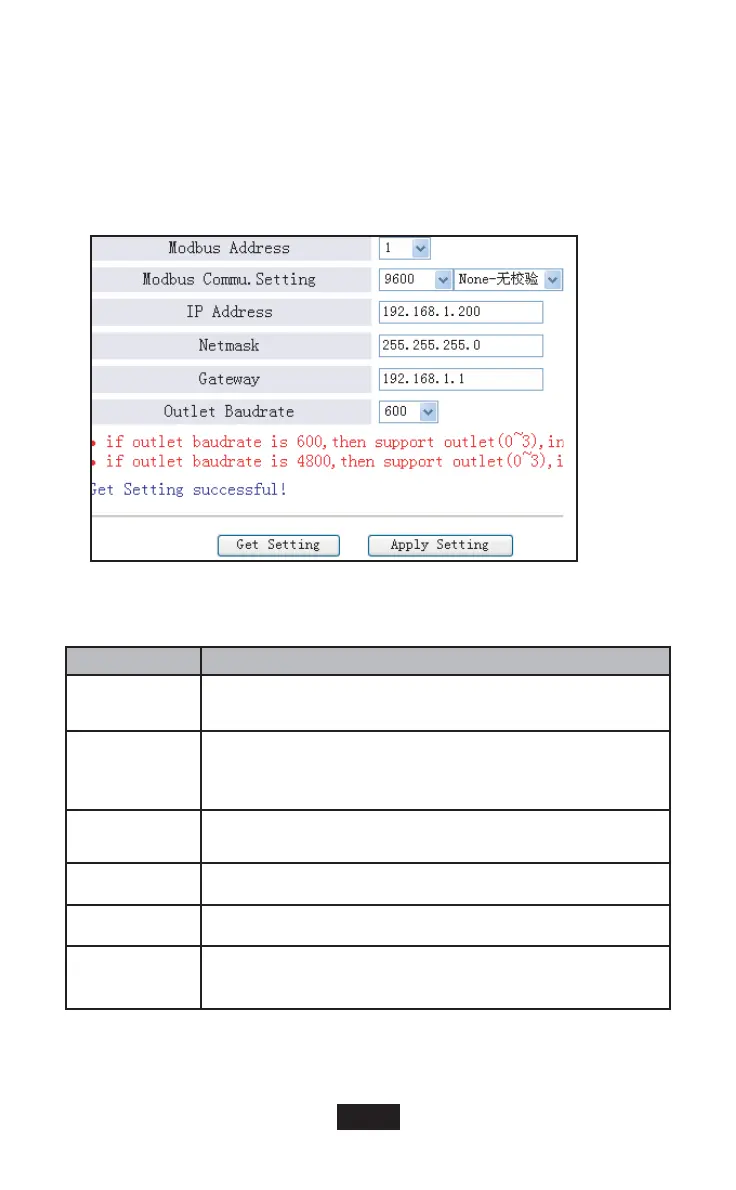

Input http://192.168.1.200 in the address bar in IE (suggest to use IE). Choose
“Configuration” when web page of modbus gateway displays, as shown below:
Parameters Setting:
Parameter
Description
Modbus address
Modbus commu-
nication setting
IP address
Subnet Mask
Gateway
Baud rate of the
outdoor unit
Modbus ID, to distinguish modbus gateway with multiple
Modbus protocols in the same subnet. Don’t repeat the address.
Baud rate: suggest 9600˗
Check bit: no checking by default
Stop bit: 1StopBit by default
IP address of modbus gateway, multiple IPs can’t be the same.
Default˖255.255.255.0
Local gateway address
Outdoor communication baud rate which is connected to
modbus gateway
Click “Application Settings” after changing the corresponding parameters. Click “Get
Settings” when apply the new settings. Modbus gateway will restart automatically
after changing settings, the network will break and reconnect.
