1- Handle
2- M5*14 screw(two)
3- Screw hole cover (two)
1) The handle is inserted below the display control board
of door, aligning with the screw hole.
2) Fixing the handle by using the screw.
3) Assemble the screw hole cover onto the screw hole.

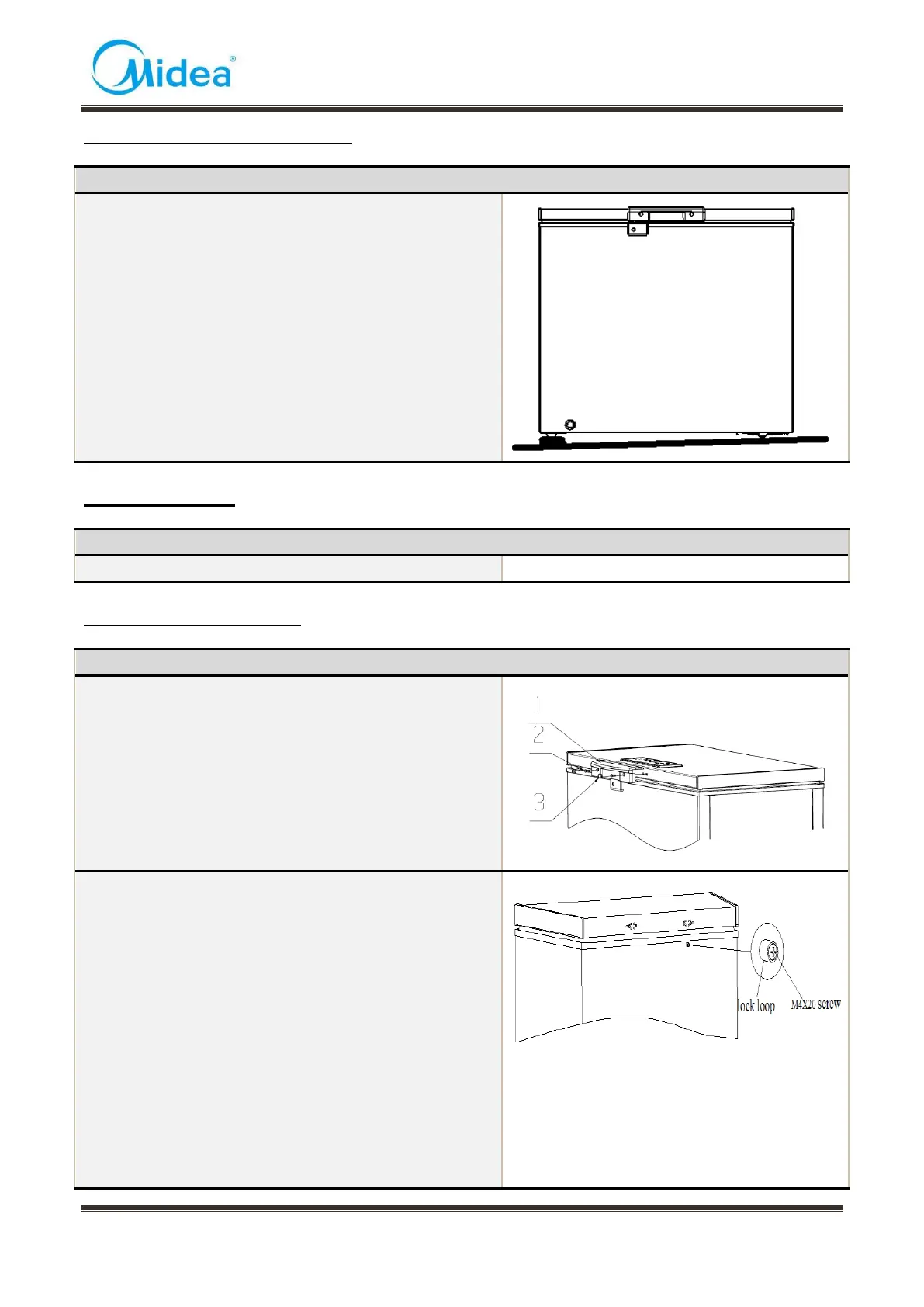

1.Fix the lock loop to its mounting hole near the frame in
the front side plate of the box with a M4x20 or M4x8
screw. Pay attention to the direction of the lock loop with
its countersunk side facing outwards.
2.Hold the handle with the left hand, and aim its
mounting hole at the mounting hole of the door. Insert the
key into the keyhole with the right hand, and then turn the
key clockwise to drive the rotation of the lock hook.
Meanwhile, adjust the position of the handle from side to
side in a proper manner to ensure the lock hook can
hook the lock loop in locked state. Afterwards, fix the
handle to the door with four M5X16 screws.
3.Install the handle cover
To Next Page
