Midea CHEST FREEZER Series

Service Manual_2018-V1.0
35

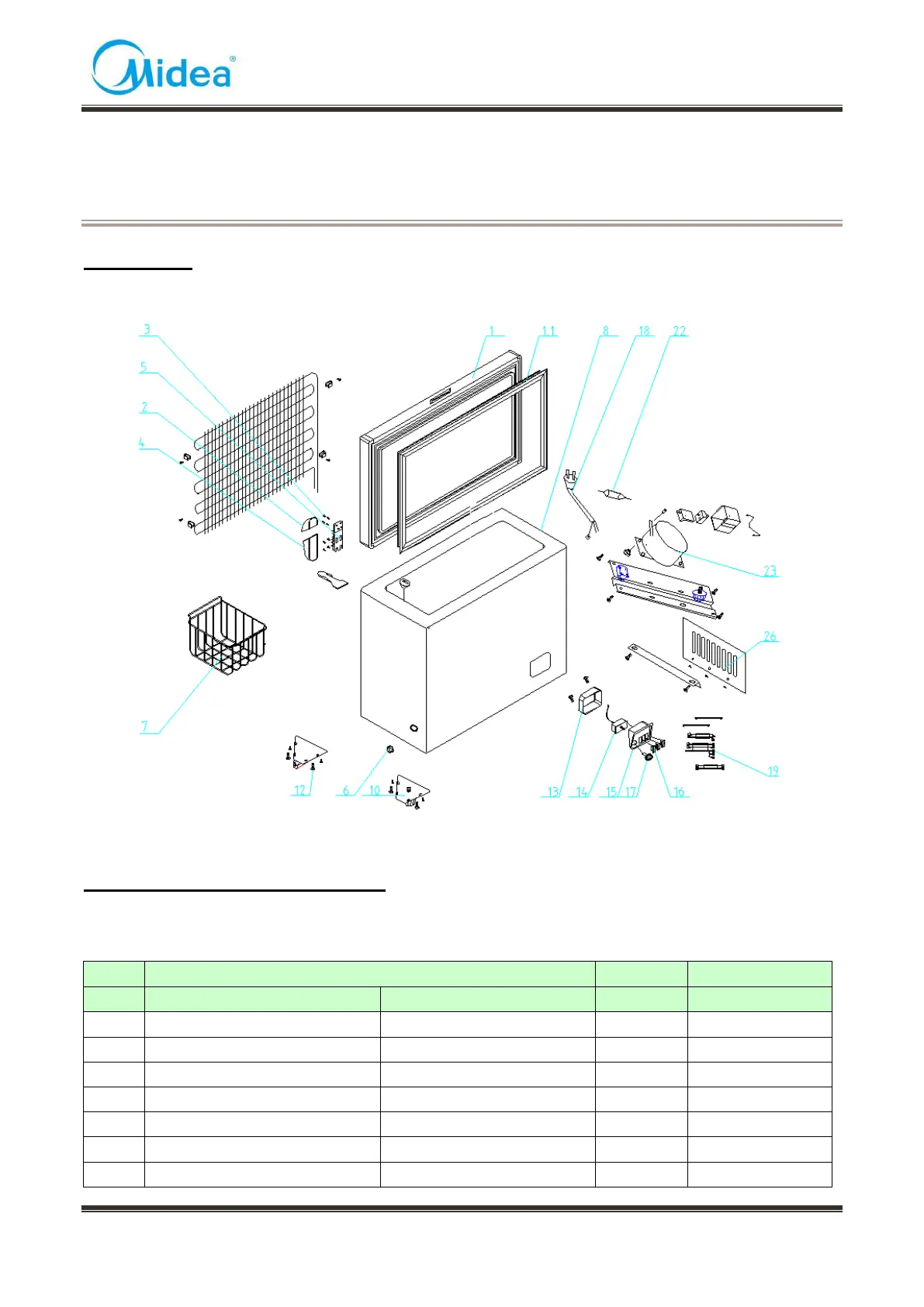

12. Figures and details of repair
parts(Documents are provided separately)
12.1 Figures
12.2 List of parts and components
CE-BD138-FT 22032010002321
序号
零部件名称
数量
物料编码
No.
Chinese Name
Part Name
Quantity
BOM Code
1
冷冻室门体总成
Freezer door assembly
1.0
12832000007562
1.1
门封条
Door gasket
1.0
12132000000392
2
上铰链罩
Upper hinge cover
2.0
12132000001075
3
十字槽盘头自攻锁紧螺钉
tapping locking screw
15.0
11303309000081
4
下铰链罩
Lower hinge cover
2.0
12132000001076
5
钣金铰链
Sheet mental hinge
1.0
12232000000481
6
水管盖
drain tube cap
1.0
12132000000362
