Service Manual_2018-V1.0
25

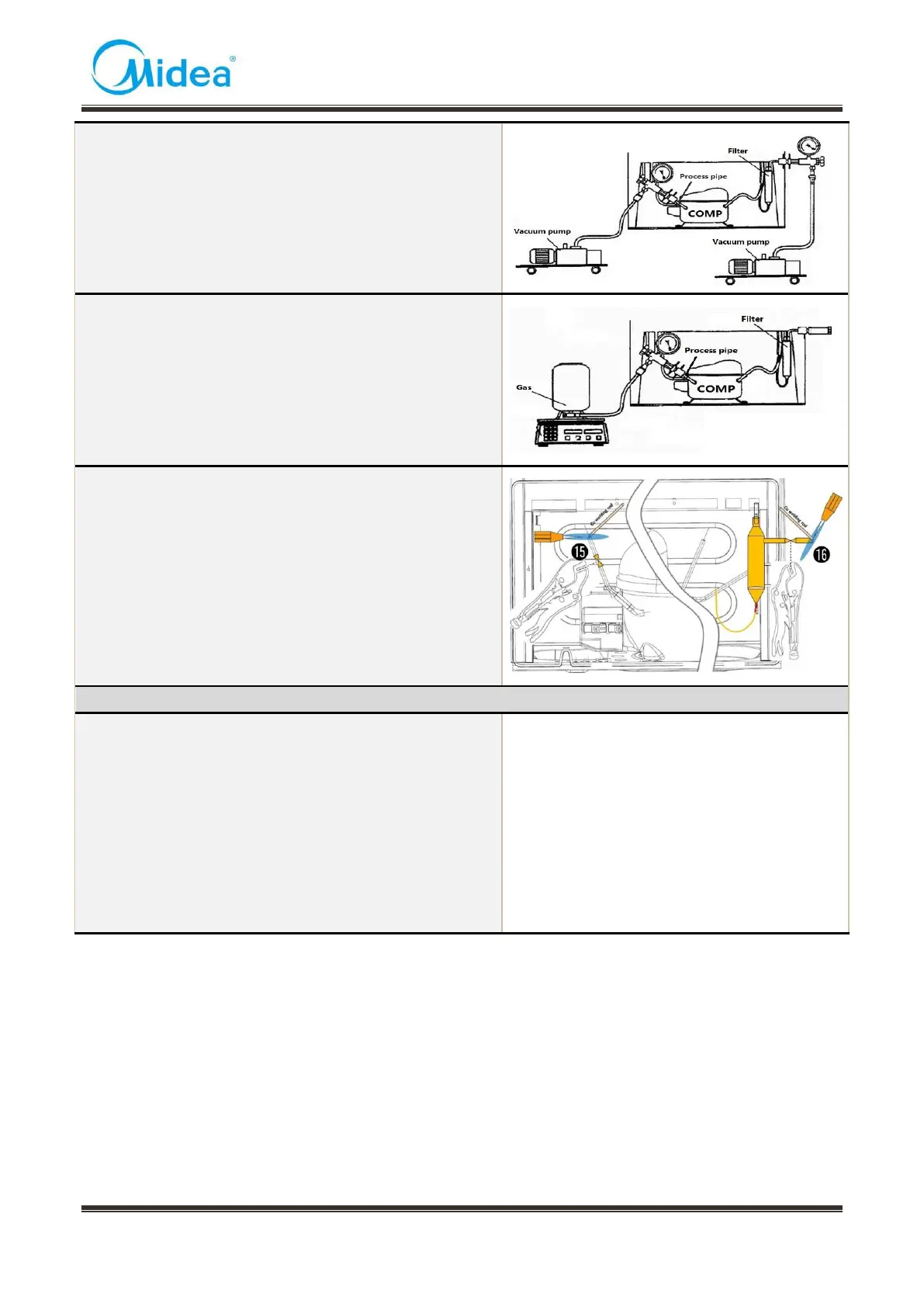

11）Vacuum system,The degree of vacuum below 6Pa.
12）Perfusion refrigerant.
13）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Piping system in the compressor case
❶ Capacitor
❷ -1 Front condenser pipeline-1
❸ -2 Rear condenser pipeline-2
❹ -1Anti-dew pipe-1
❺ Temperature-control box assembly
❻ Drying filter
❼ Capillary
❽ Protective cover
❾ Wires
❿ Compressor
⓫ Suction Pipe
⓬ -1 Rear condenser pipeline-1
⓭ -2 Front condenser pipeline-2
⓮ -2Anti-dew pipe-2
⓯ Compressor Assembly Board
