Fan ass’y

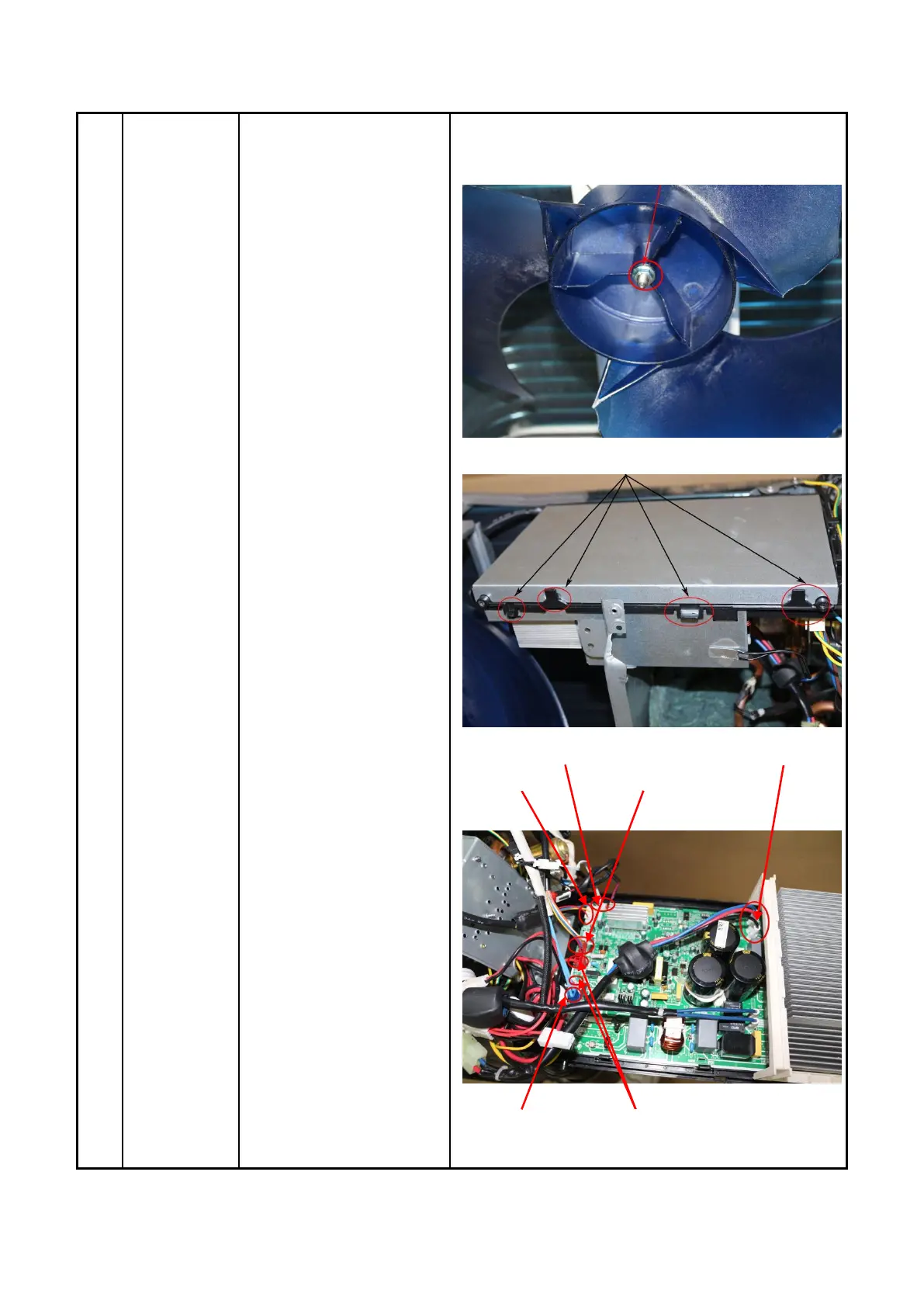

How to remove the fan
ass’y.
1) After remove the panel
plate following procedure
1, remove the hex nut
fixing the fan and then
remove the fan.
2) After remove the top
cover . Unfix the hooks
and then open the
electronic control box
cover.
○
1
○
2
T3,T4,T5 sensor wire
Motor wire
Electronic expansion valve
Compressor wire
4 way valve wire
Electric pipe heater and Crankcase electric heater
