Midea CS11M-18HRFN1-MT0W

70

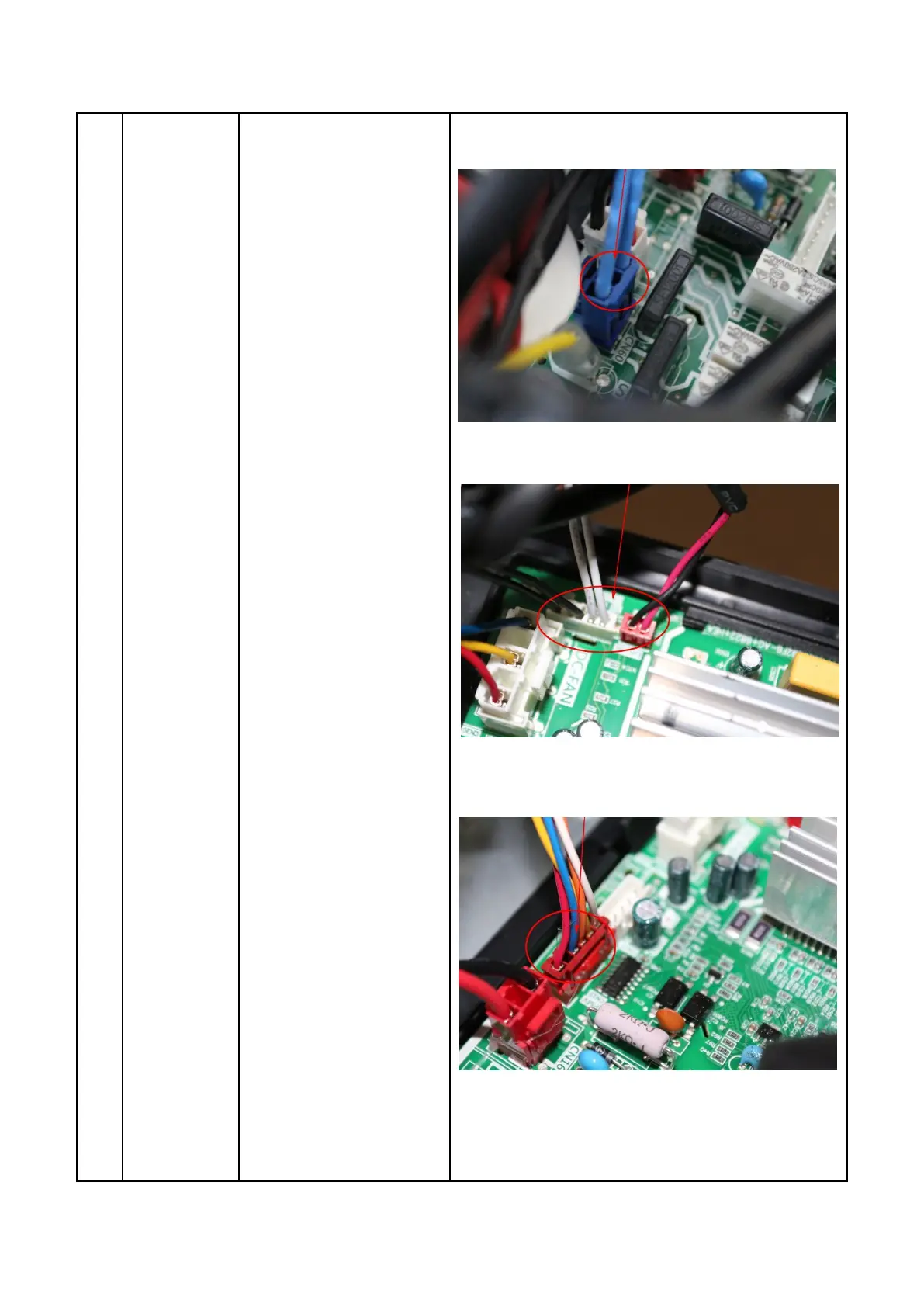

2) Pull out the two blue
wires connected with the
four way valve.
3) Pull out connectors of
the condenser coil temp.
sensor(T3),outdoor
ambient temp. sensor(T4)
and discharge temp.
sensor(TP).
4) disconnect the
electronic expansion valve
wire
○
3
○
3
○
4
○
2
○
2
