3.2 Pipelines Connection

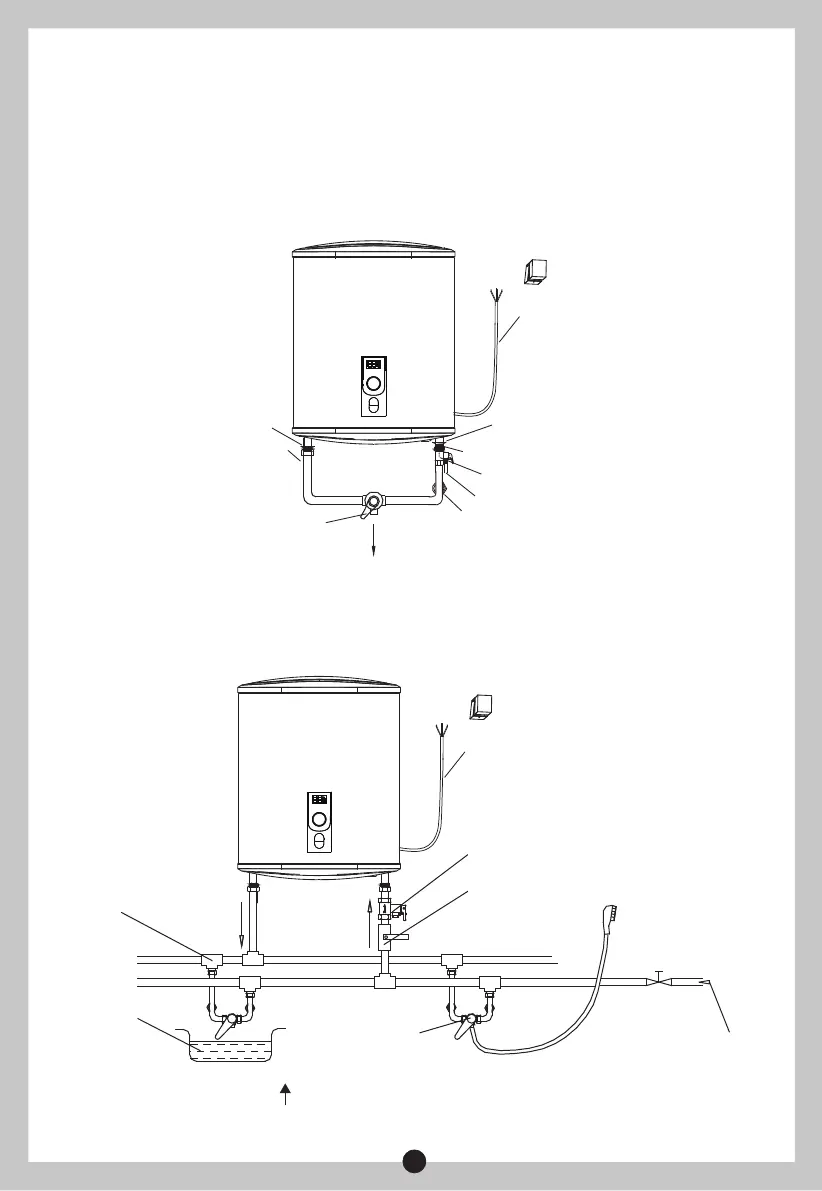

If the users want to realize a multi-way supply system, refer to the method shown in fig.5 and
fig.6 for connection of the pipelines.
④
5
6
①
②
③
The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as
the unit; The minimum pressure of inlet should use Pa as the unit.
Connection of pressure relief valve with the heater on the inlet of the water heater.
In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with
the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).
(Fig.4)
(Fig.5)
Pressure relief valve
Water inlet valve
Water inlet valve
Running water pipeMixing valve
Water pool
Triple joint
Shower nozzle
Hot water outlet
Cold water inlet
Rubber seal gaskets
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
Hot
water
outlet
Cold
water
inlet
Hot water
Rubber seal gaskets
VERTICAL INSTALLATION
Power cord
Power cord
