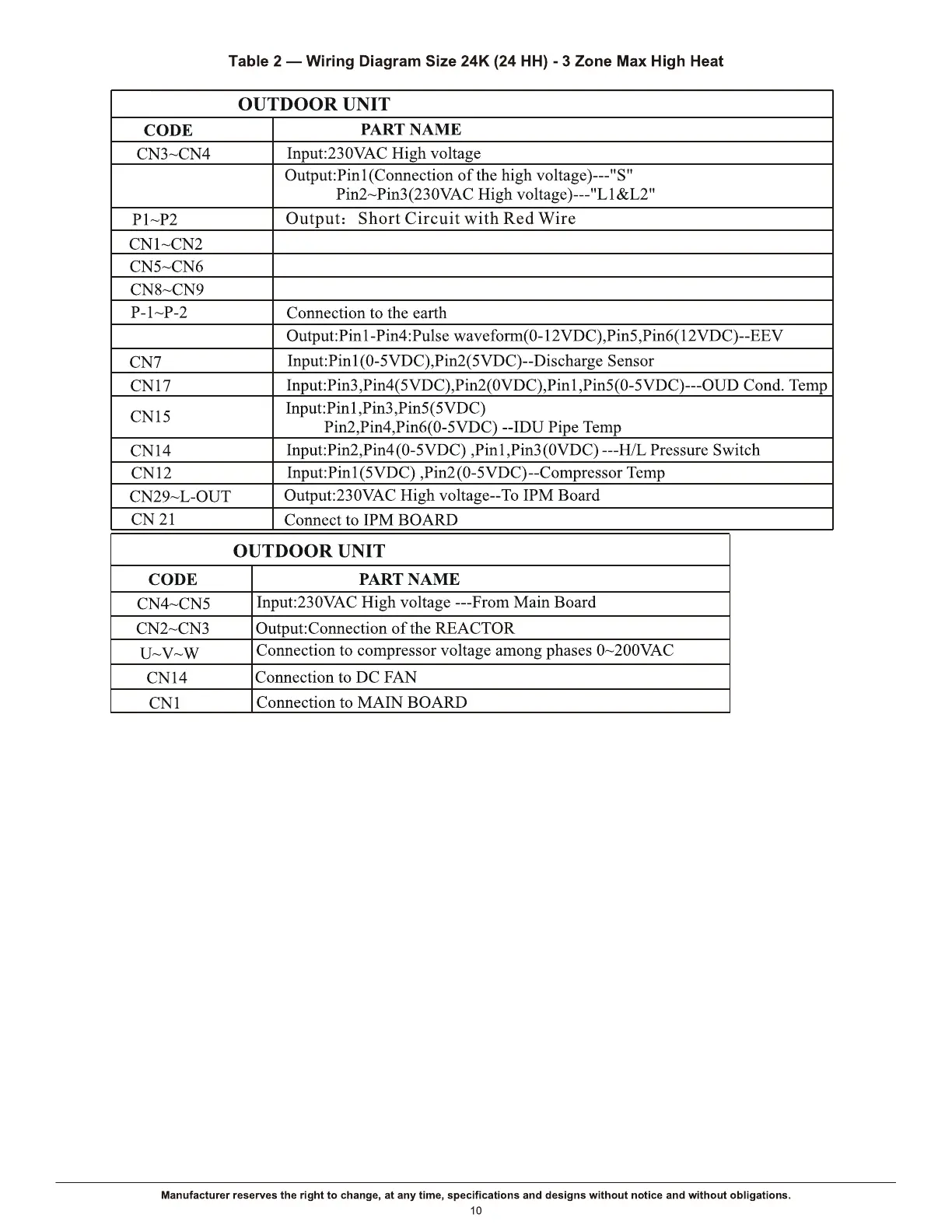

CN18,CN19,CN22
CN20,CN23,CN25
MAIN CONTROL BOARD
IPM DRIVE BOARD
Output:230VAC High voltage----REVERSE VALVE
Output:230VAC High voltage----CRANKCASE HEATER
Output:230VAC High voltage----CHASSIS HEATER
DLCM(R/H)B: Service Manual
