Midea FS40-15FR

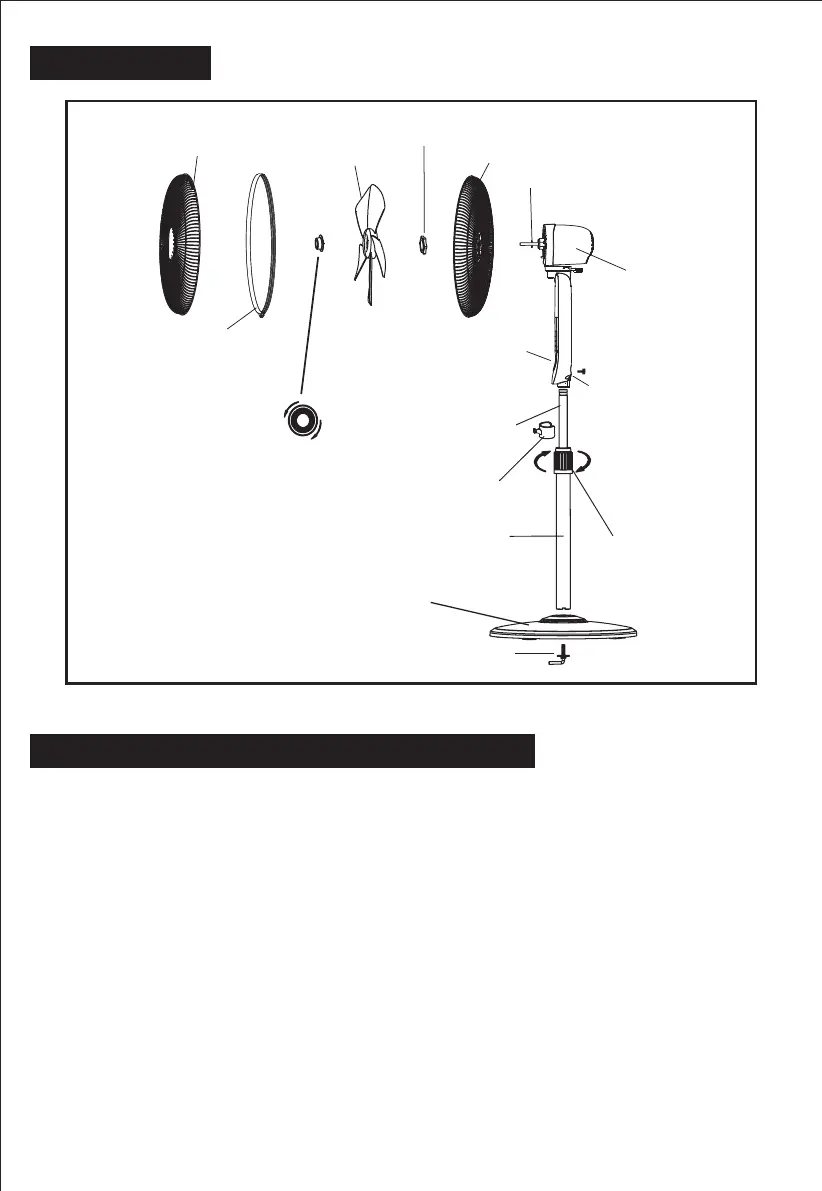

PART FIGURE
Note: All the pictures in this manual are for
explanation purpose only. Any discrepancy
between the real object and the illustration
in the drawing shall be subject to the real
subject.
Front grill
Fan blade
Plastic nut
Tighten
Spinner
Loosen
Rear grill
Internal Pole
Extension Pole
Motor shaft
Motor housing
Circlip
Thumb
screw
Fasten
Chassis
Height
adjustment ring
7-shape Bolt
Push button
1. Unscrew the 7-shape Bolt from the Extension Pole. (Fig.1)
2. Insert the extension pole into the chassis and tighten the 7-shape Bolt (Fig.2)
3. From the extension pole loosen the height adjustment ring and adjust the internal
pole to the desired height. (Note: If you can’t find the internal pole, it must inside
the extension pole. You can pull it out from the extension pole.) (Fig.3)
4. To attach the head unit to the internal pole, loosen the thumb screw on the bottom
of the head unit. Place the head unit on the internal pole and tighten the thumb
screw in alignment with the groove on the internal pole. (Fig.4)
CAUTION: Height adjustment ring must be fully fastened before the assembly of the
motor section to the internal pole.
5. Usage of the remote control hook: make the straight face of hook up, clip the hook
to the inner tube along with the opening, the hook can be moved up and down
along the tube (Fig.1). The hook of the remote control may be linked to the
hole for storage when not in use. (Fig.2)
ASSEMBLY OF CHASSIS & COLUMN UNIT
2
Remote Control Hook
