Internal
Pole
3

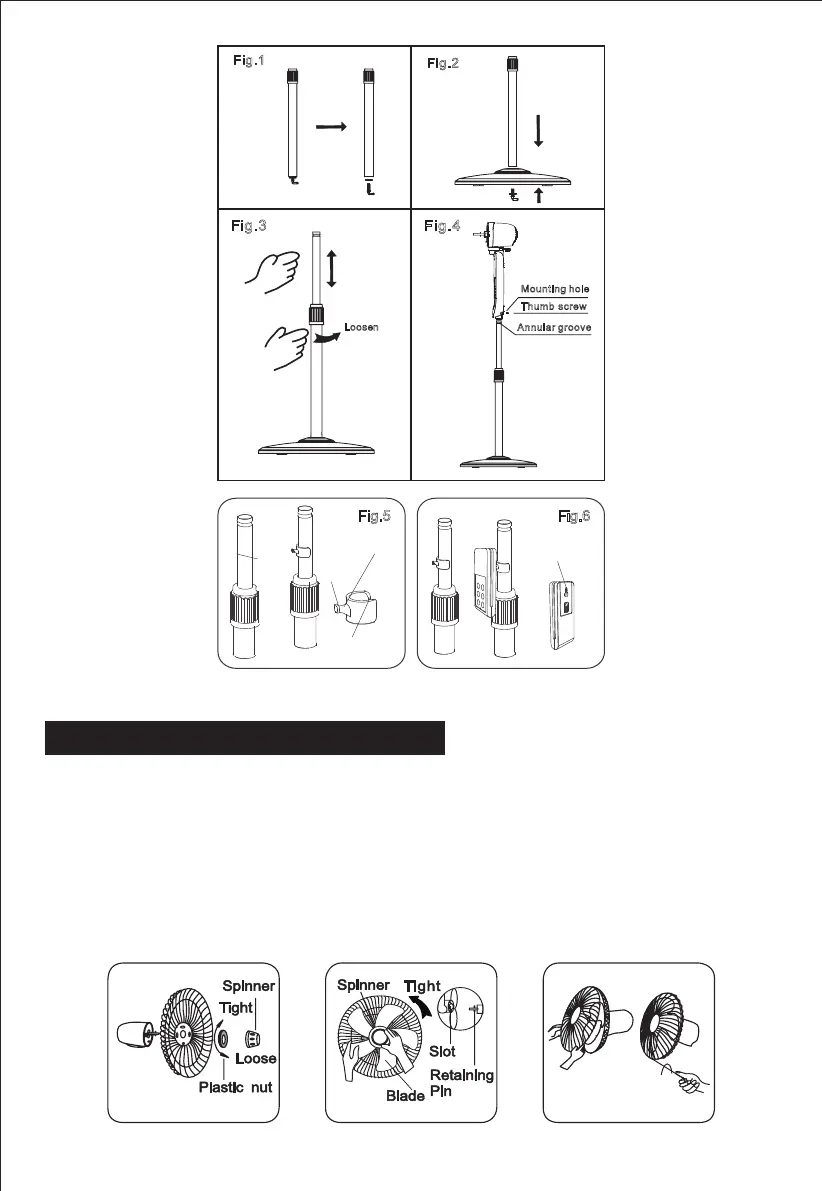

GRILL & FAN BLADE ASSEMBLY
1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the
plastic nut counterclockwise to remove both of them. Fix the rear grill to the
motor then tighten the plastic nut again. (Fig.7)
2. Insert the blade into shaft, and make sure the rotor shaft pin is fitted into groove
of the blade. Turn the spinner counterclockwise to tighten the blade. (Fig.8)
3. Fix the front grill and the rear grill with circlip clip and then fasten the circlip clip
and lock the screw and nut. (Fig.9)
Fig.7 Fig.8 Fig.9
Annular groove
Mounting hole
Thumb screw
F
Fig.5 Fig.6
ig.3
Looseen
F
ig.4
Fig
.
1
Fig.2
Straight face
Hook
Opening
Hook hole
