Midea HC-702WE User Manual

10
Chapter 7: Exploded View of the Product
and Parts List

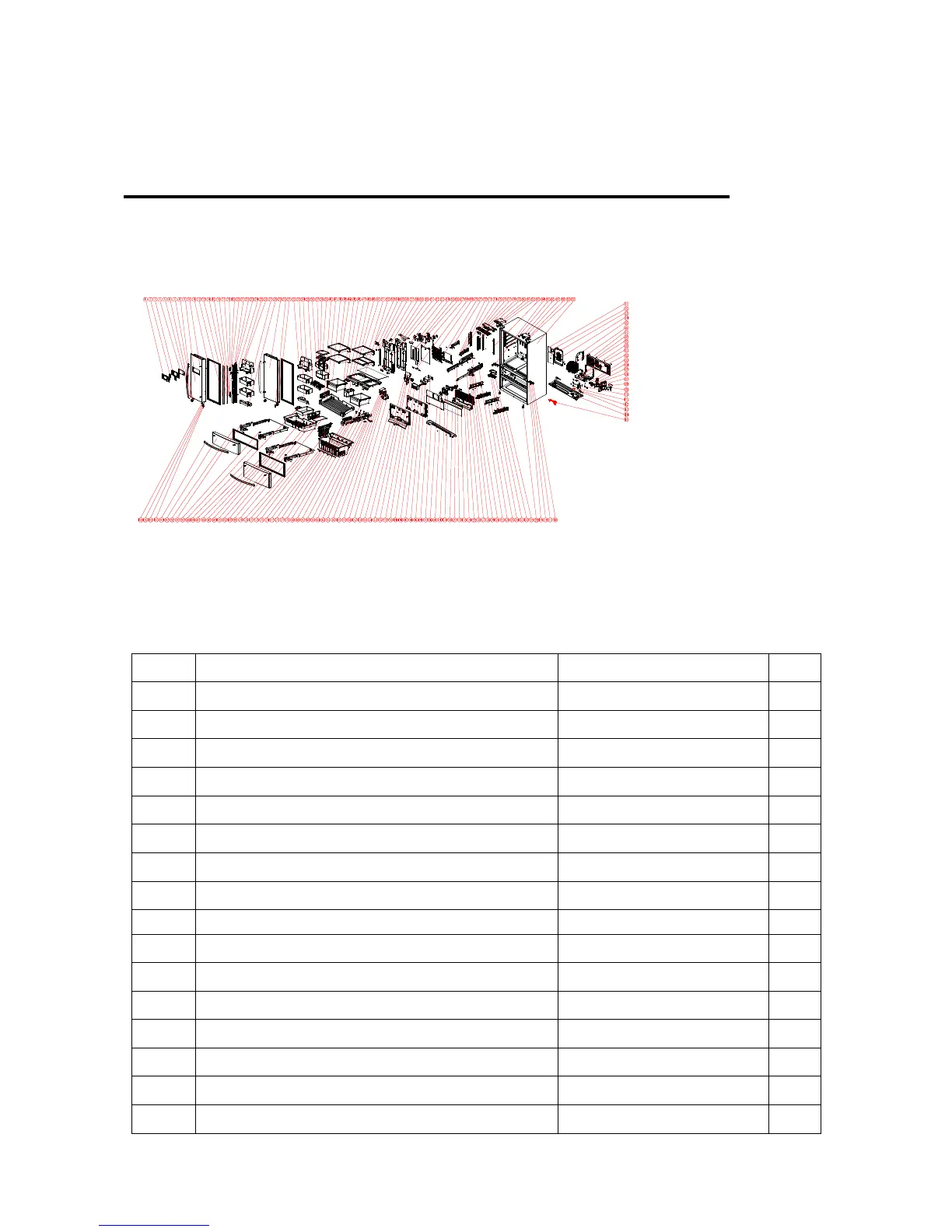

Exploded view of product:
Parts list:
S/N Name Material /specification Qty.
1 Display panel decorative part
IMD technology /ABS 1
2 Rubber keying of display panel
Silicon rubber 2
3
PCB dead plate of display panel
ABS 1
4 Display panel
Component 1
5 Cross recessed pan head tapping screw
Q215 4
6 Magnet-fixed box
POM 2
7 Magnet
High magnetic 8
8 Cold storage door handle component Stainless steel304
2
9 Preassemble of the left cold storage door
Component
1
10 Handle set bolt
45#+heat treatment 8
11 Cold storage door seal component
Component
2
12 Rollover beam cover plate
Cold-rolled plate Q235 (t0.8)
1
13 Rollover beam heater
Component
1
14 Torsional spring sleeve
Copper pipe
1
15 Rollover beam down-pivot housing
ABS
1
16 Rollover beam down-pivot
POM
1
