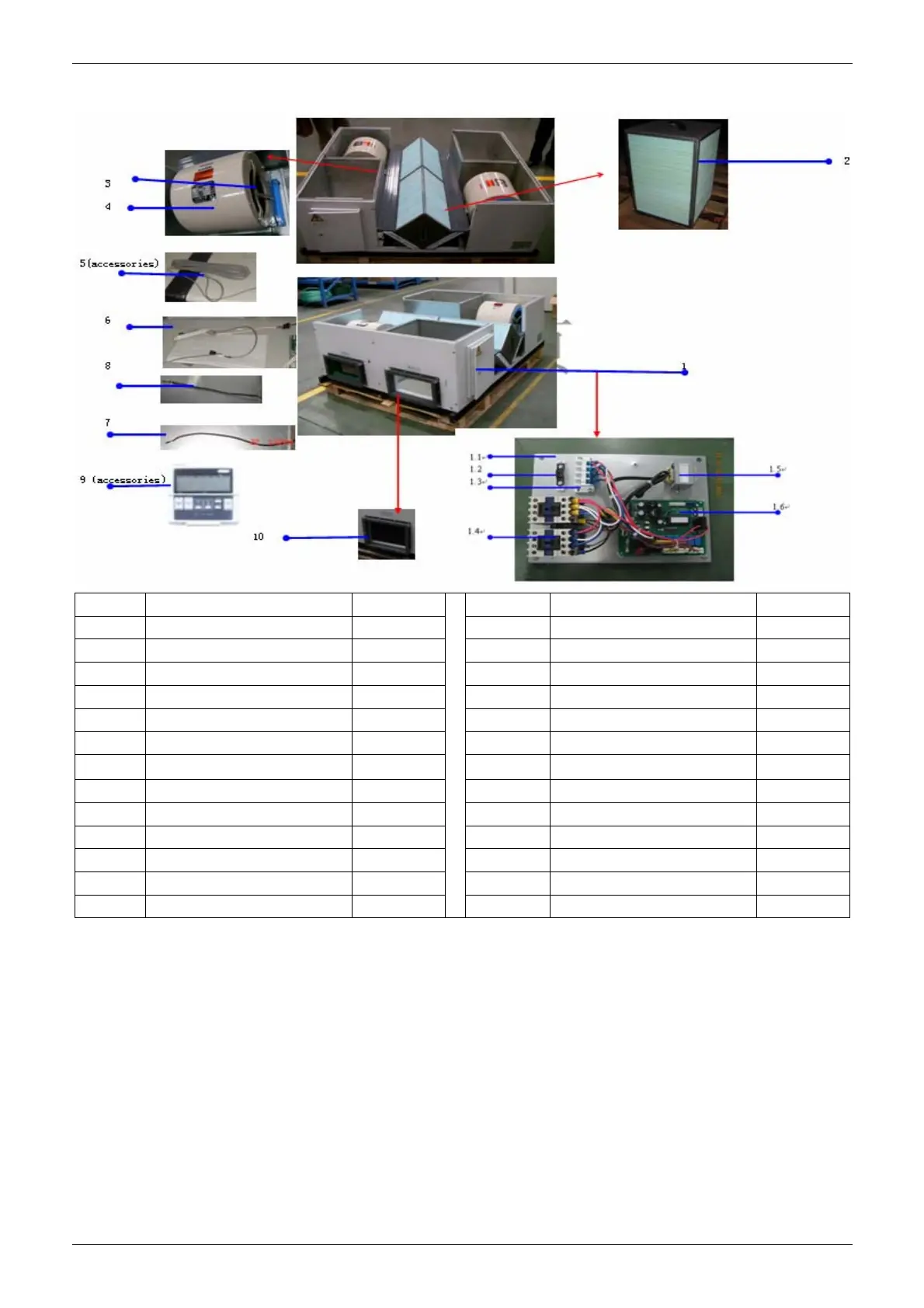

Exploded View MCAC-KTSM-2009-03
12 Heat Recovery Ventilation
10.2 HRV-1500 HRV-2000
No. Part Name Quantity No. Part Name Quantity
1 E-part box ass'y 1 1.12 Signal wire 1
1.1 Installation board 1 1.13 Brown wire 1
1.2 Wire clamp 1 1.14 Yellow wire 1
1.3 Wire joint 1 1.15 Connect wire 1
1.4 AC contactor 2 1.16 Pole 4
1.4 Contactor rail 1 2 Heat exchange core 2
1.5 Transformer 1 3、4 Fan Motor 2
1.6 Main control board ass'y 1 5 Wire joint ass'y 1
1.7 Wire joint,4p 1 6 Display board ass'y 1
1.8 Fixing board 1 7 Temp. sensor 1
1.9 Signal wire 1 8 Room temp sensor ass'y 1
1.10 Connect wire 1 9 Wire controller 1
1.11 Signal wire 1 10 Inlet/Outlet air flange 4
To Next Page
