MCAC-KTSM-2009-03 Operation Condition Limits
Heat Recovery Ventilation 11
9. Operation Condition Limits
Model
Outdoor air
temperature
Room
temperature
Room humidity
All models -7℃～43℃ -7℃～43℃
Lower than 80%
If higher than 80%, the surface of indoor unit may be
condensed or the condensate will be blown from air outlet.

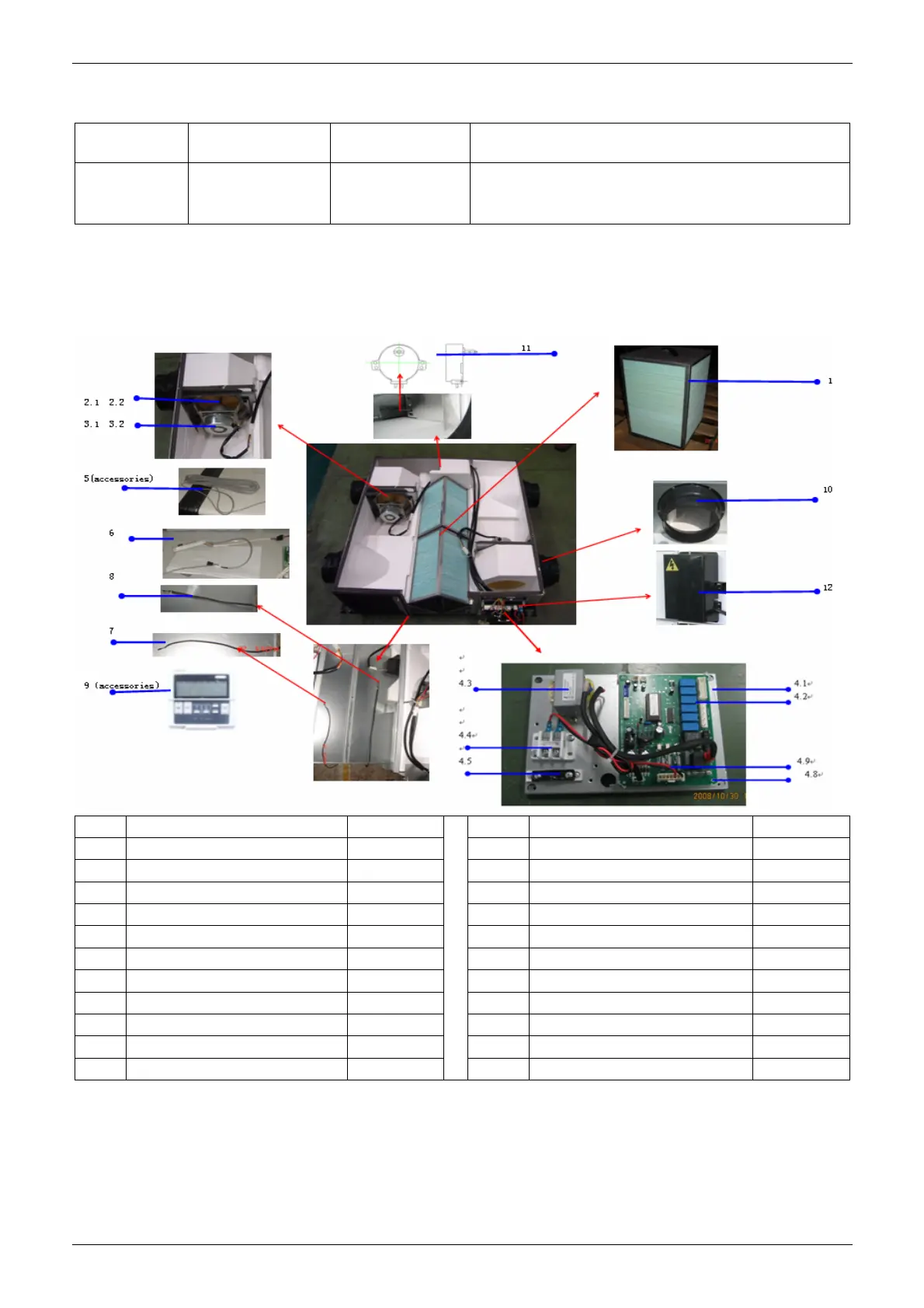

10. Exploded View
10.1 HRV-200 HRV-300 HRV-400 HRV-500 HRV-800 HRV-1000
No. Part Name Quantity No. Part Name Quantity
1 Heat exchange core 1 4.8 Pole 4
2.1 Fan 2 4.9 Power supply wire 1
2.2 Volute shell 2 5 Wire joint ass'y 1
3.1 Fan Motor 2 6 Display board ass'y 1
3.2 Motor capacitor 2 7 Temp. sensor 1
4 E-part box ass'y 1 8 Room temp sensor ass'y 1
4.1 Installation board 1 9 Wire controller 1
4.2 Main control board ass'y 1 10 Inlet/Outlet air 4
4.3 Transformer 1 11 Motor 1
4.4 Wire joint, 2p 1 12 E-Part box cover 1
4.5 Wire clamp 1
