12

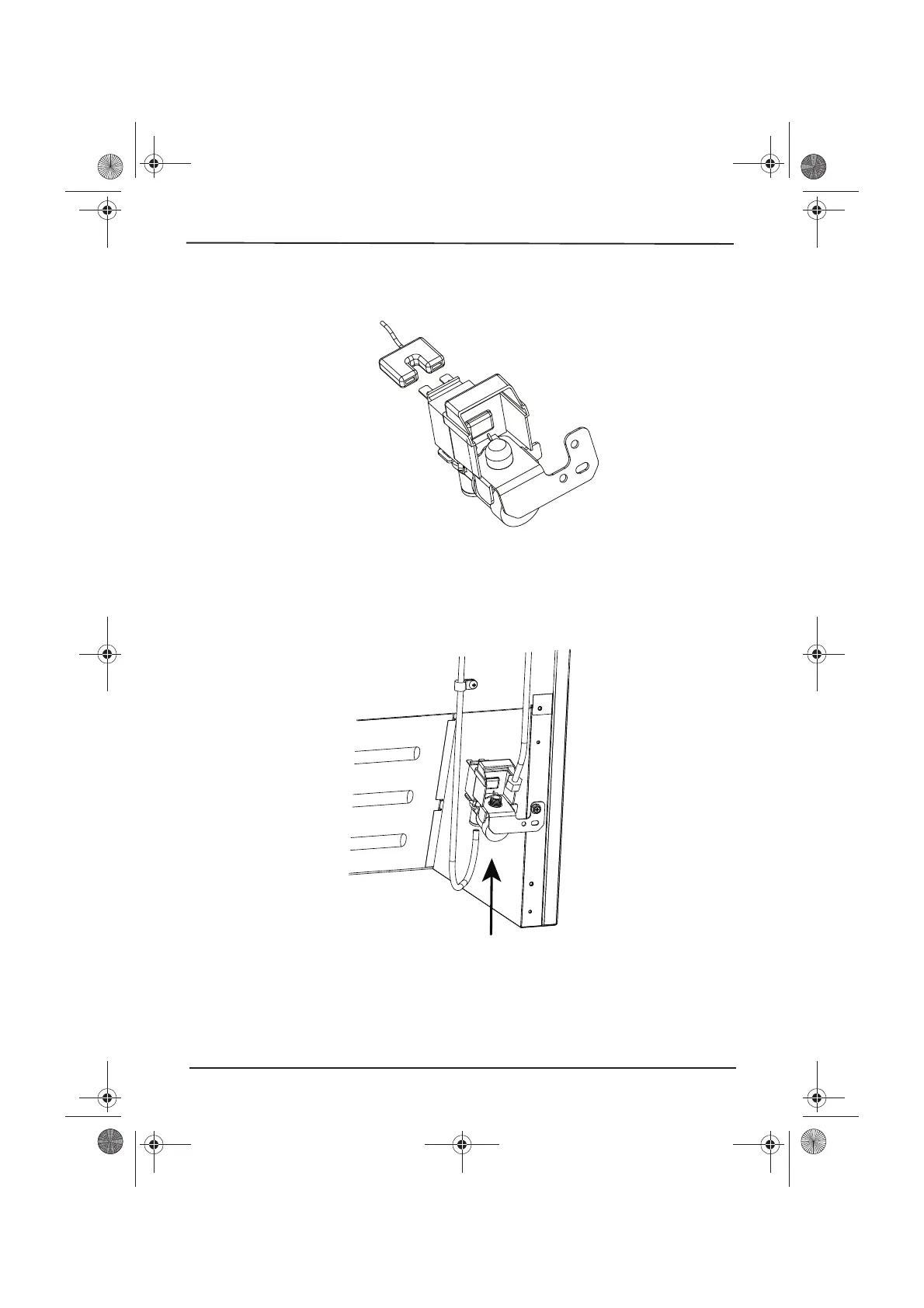

15 Connect the wiring harness to the water valve, making sure that the
connection is tight.
16 Grasp the other end of the plastic tube and push it firmly into the
quick-connection on the valve until it bottoms out.
17 Clean the back of the cabinet with a commercial household cleaner,
ammonia, or alcohol before applying the clamps.
Wiring harness
plug
Water
valve
Plastic water
supply tubing
Ice Maker
To Next Page
