Midea JL1850S-RO

4

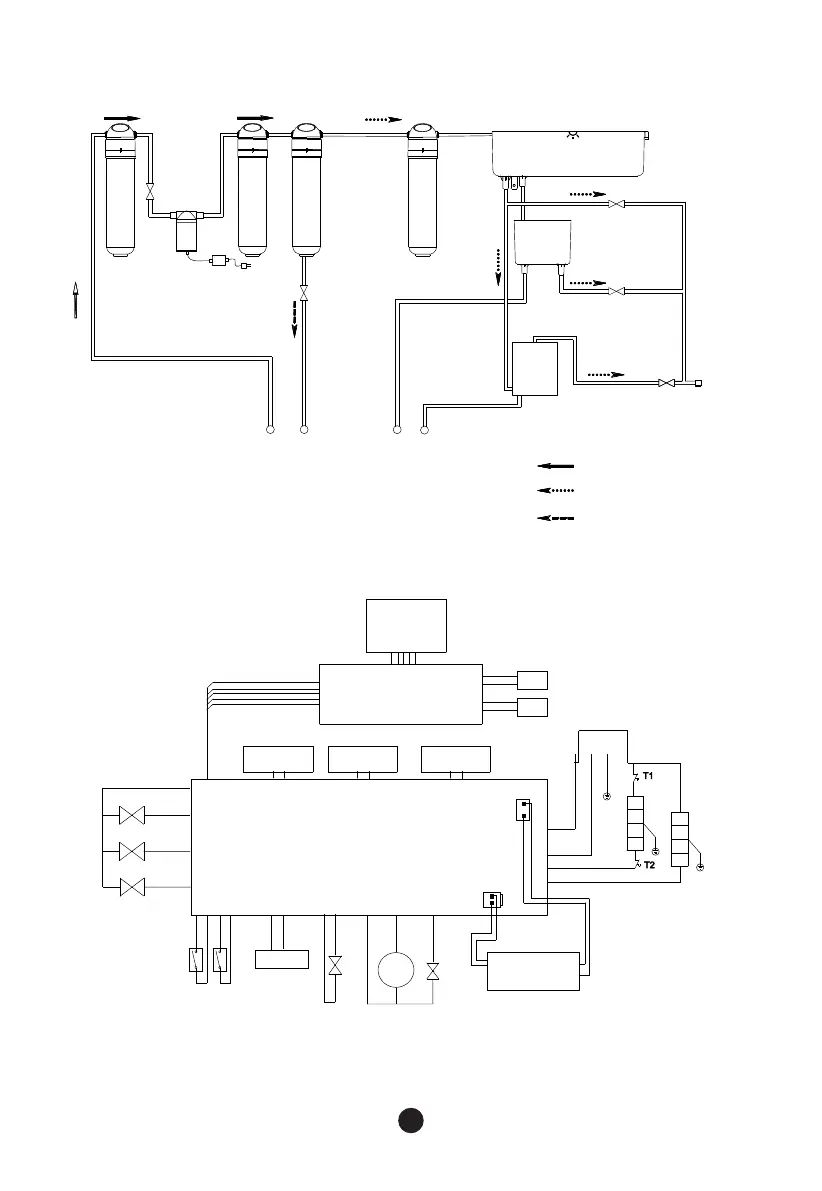

2-4. Working Principle
1. Flowchart of water generation
2. Circuit diagram
C1 active carbon
filter-F1
RO reverse
osmosis filter-F1
C2 active carbon
filter-F1
PP sediment
filter-F1
Cold water outlet
Hot water outlet
Hot water
tank
Cold water
tank
Tap water
Concentrated
water connection
Pump
Inlet solenoid
valve
Drain water
Waste water
solenoid valve
Warm water outlet
solenoid valve
Cold water outlet
solenoid valve
Hot water outlet
solenoid valve
Clean water tank
Marginal data
Inflow
Rinse and drainage
RO producing water
UV-L E D
compressor
heater
Pump
Solenoid valve 1
Power board
Controls panel
UV lamp
Solenoid valve 2
Low level
oat switch
High level
oat switch
Leakage
detection board
Cooling switch
Heating switch
Cooling NTC
Heating NTC
Display board
Solenoid valve 3
Solenoid valve 4
Solenoid valve 5
Power adapter
N L PE
