8. Take out the pin of the quick joint at the rear of the products side plate' s, and then take
out the white plug.
9. Insert the water inlet P E pipe in the quick joint, and tighten the pin. The new hose-sets
supplied with the appliance are to be used and that old hose-sets should not be reused.
10.The water cooler plug cord into a ground fault interrupter receptacle.
11. After installation, supply water and power. Discharge the first 3 tanks of purified
water by pressing the button, press the Heating and Cooling buttons on the rear panel
to purify water again, then the water output is drinkable.
12.When installing filter and replace filter please turn off the water and power supply
before installation and replacement.

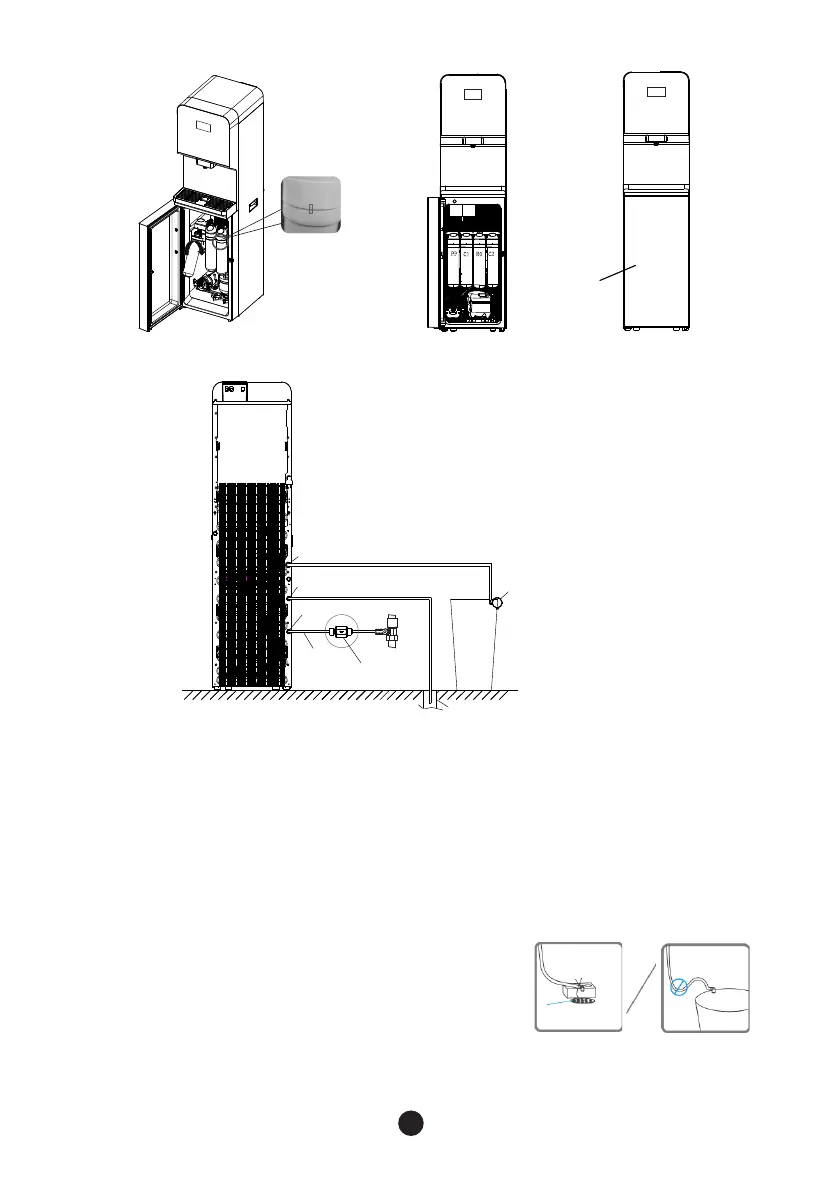

13.Concentrated water and the water drained from the
water tray can be directly discharged into the sewer
or the water drained from the water box can also be
discharged to the bucket. (Note: Drainage pipe must
be vertical and shall not be "U" or twisted at any section)
Sewer
Water inlet
1/ 4" PE pipe
(White)
Tap water
Reducing valve
Outlet of the water
collector
Concentrated water
connection
1/ 4" PE pipe(Blue)
Bucket
Pipe clamp
Floo r dr ain
3/ 8" PE pipe
Note: When the tap water pressure exceeds 0.4MPa, it requires installing the pressure relief valve.
Keep the water flowing arrow towards the water inlet interface of the machine.
Lower
door
Please install the filter to align
the positioning mark line, below
picture for reference.
