Midea M3OE-27HFN1-Q - Outdoor Unit Dimensions

Service manual DM16-01.01.11-01en
10 Multi DC inverter R410A. Outdoor unit

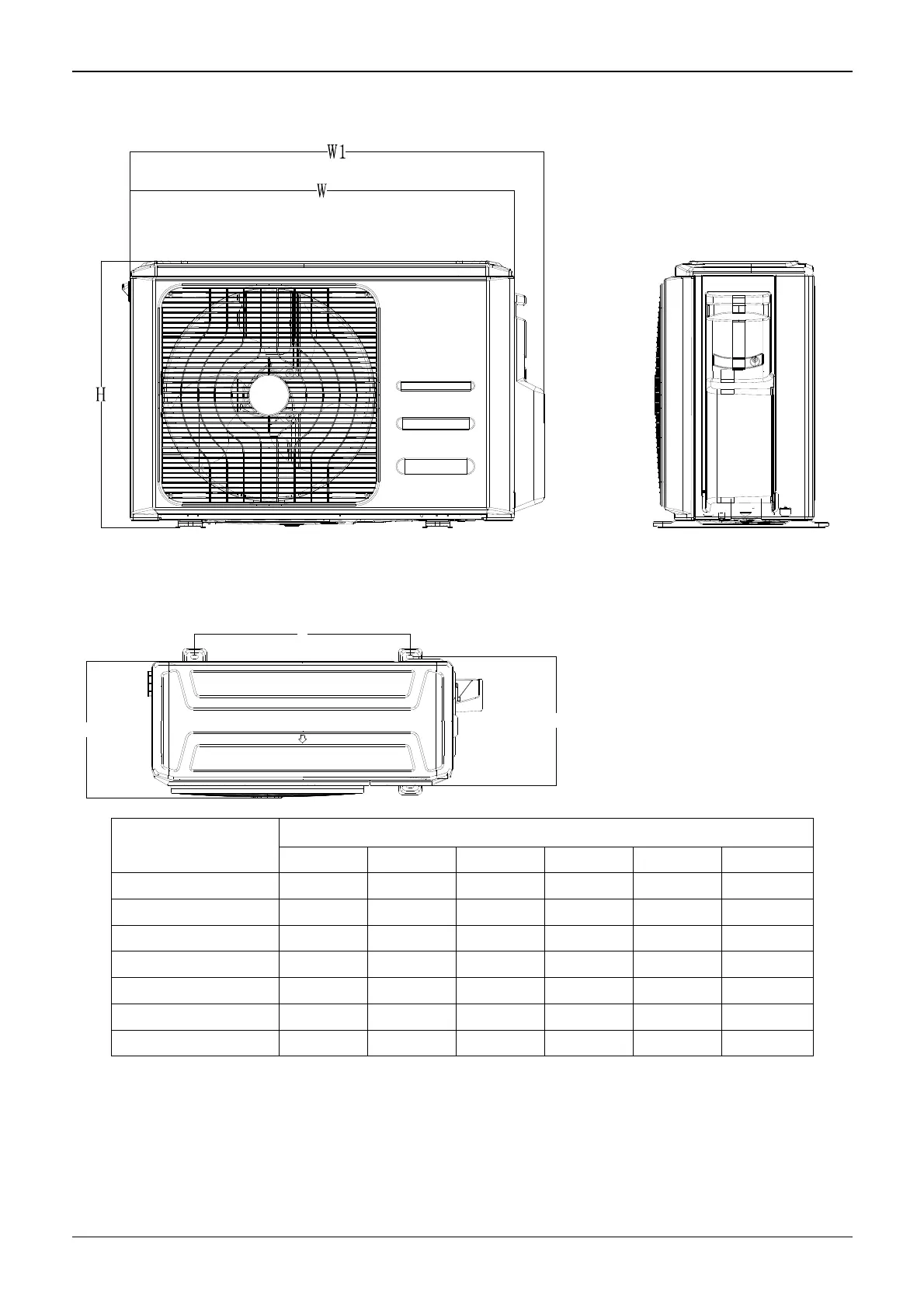

4. Dimensions
A
B
D
Model
Unit：mm
W D H W1 A B
M2OE-14HFN1-Q 800 333 554 860 514 340
M2OF-18HFN1-Q 800 333 554 860 514 340
M3OE-21HFN1-Q 845 363 702 923 540 350
M3OE-27HFN1-Q 845 363 702 923 540 350
M4OE-28HFN1-Q 946 410 810 1034 673 403
M4OB-36HFN1-Q 946 410 810 1034 673 403
M5OE-42HFN1-Q 946 410 810 1034 673 403
