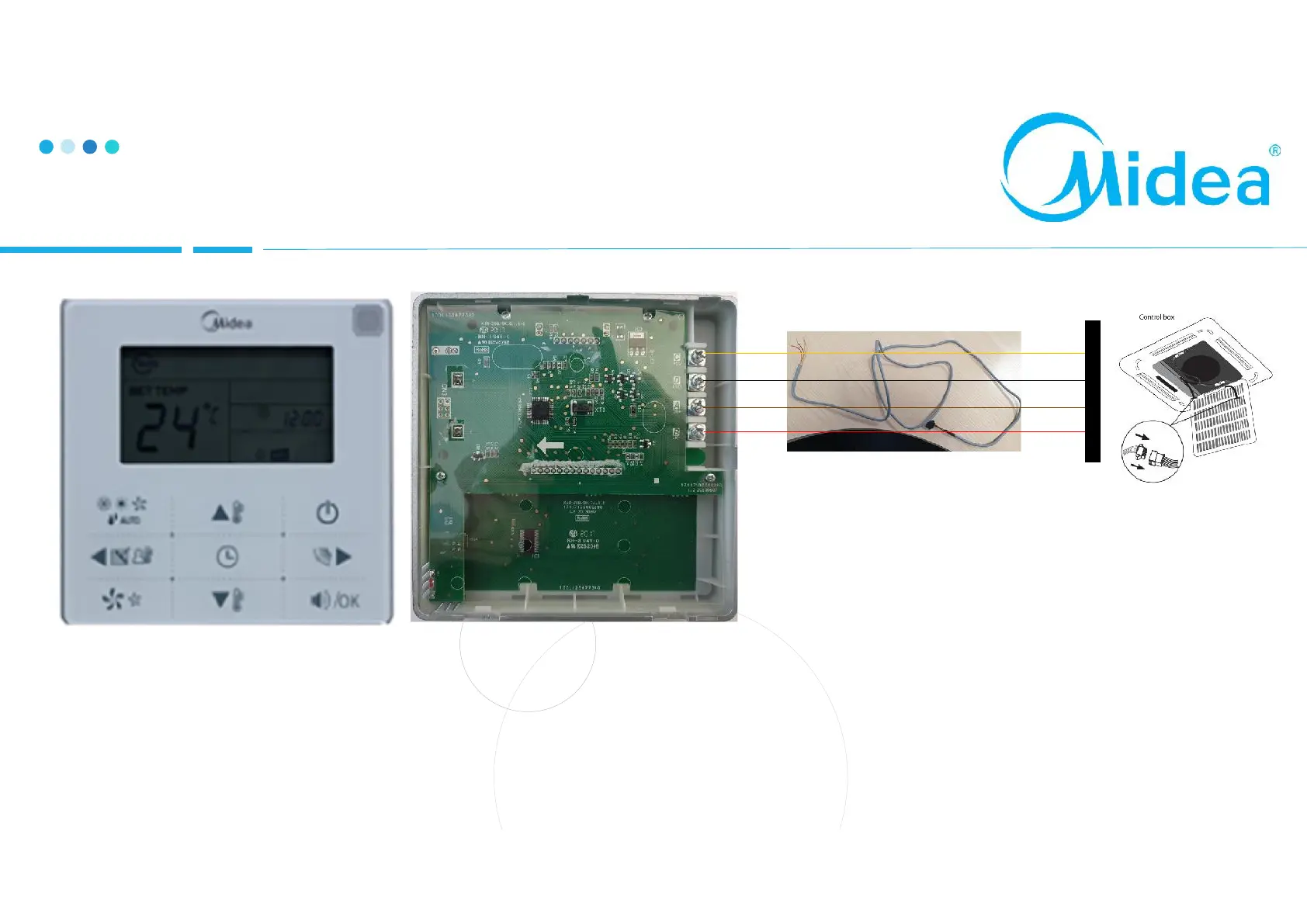

KJR29B (one to one)
•
Comes with a 6m c
able
•
Jack plugged one side/made off th
e other
•
Jack plugs int
o f
as
cia/displa
y board
•
Other end is made off an
d wired in
to the
terminal
s
•
A&B
–
Comms
•
C&D
–
5v P
ower
A
–
Brow
n/
Blue
B
–
Red
C-
Y
ellow
D
-
Black
