Installation – Controllers – KJR29B (one to many)

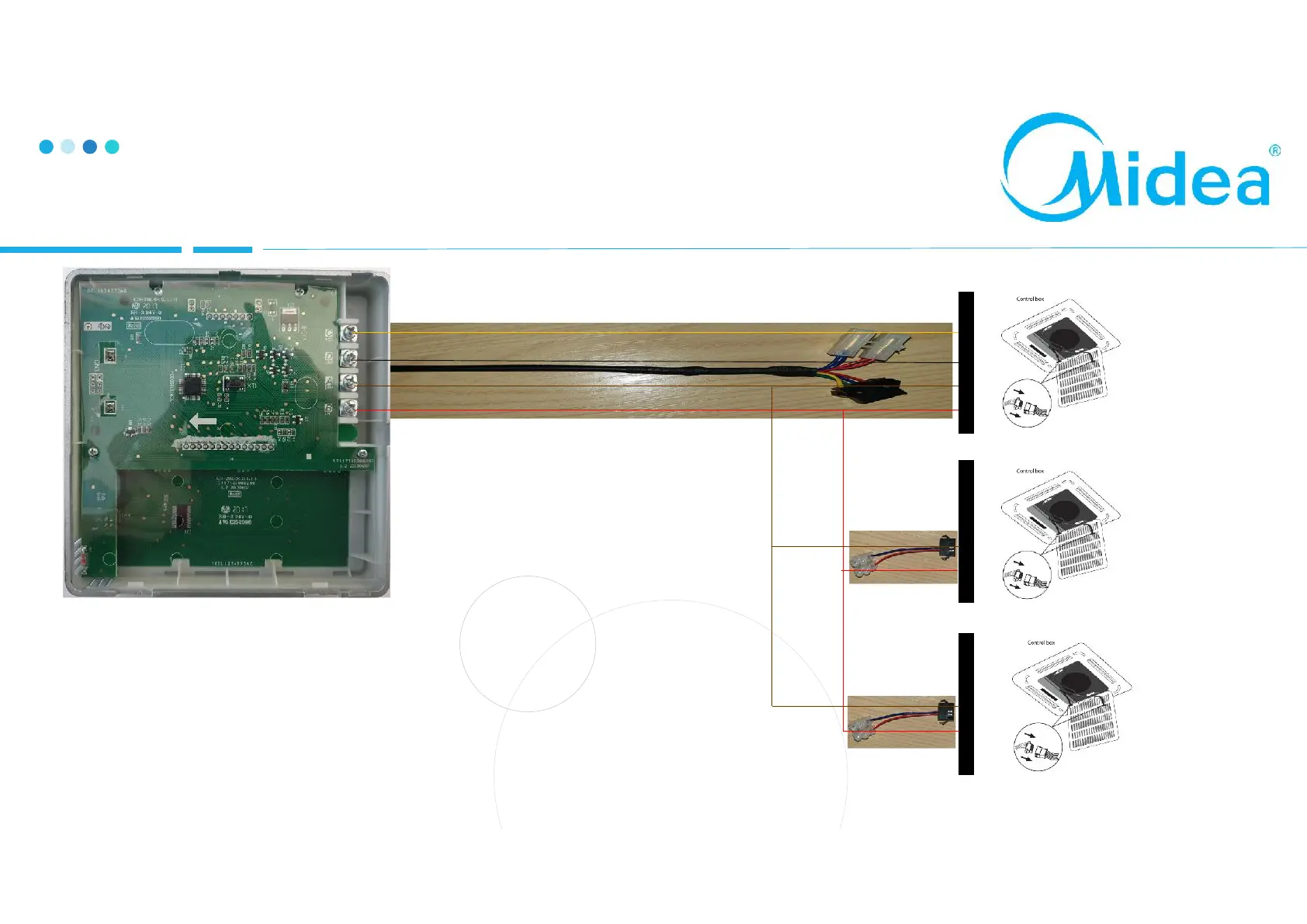

• KJR29B master cable can be
supplied free of charge (terminal
strip added to A&B)
• Plugs into the unit closest to the
controller
• Slave adapters can be ordered
for additional units
• These consist of the same jack
plug as the master cable but only
has connections for A&B
• 2 core cable can be daisy chained
between A&Bs and connected
onto A&B terminals at the
master
A – Brown/Blue
B – Red
C- Yellow
D - Black
To Next Page
