Midea MAD160-A2801GPS

Service manual for Washing Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 20 －

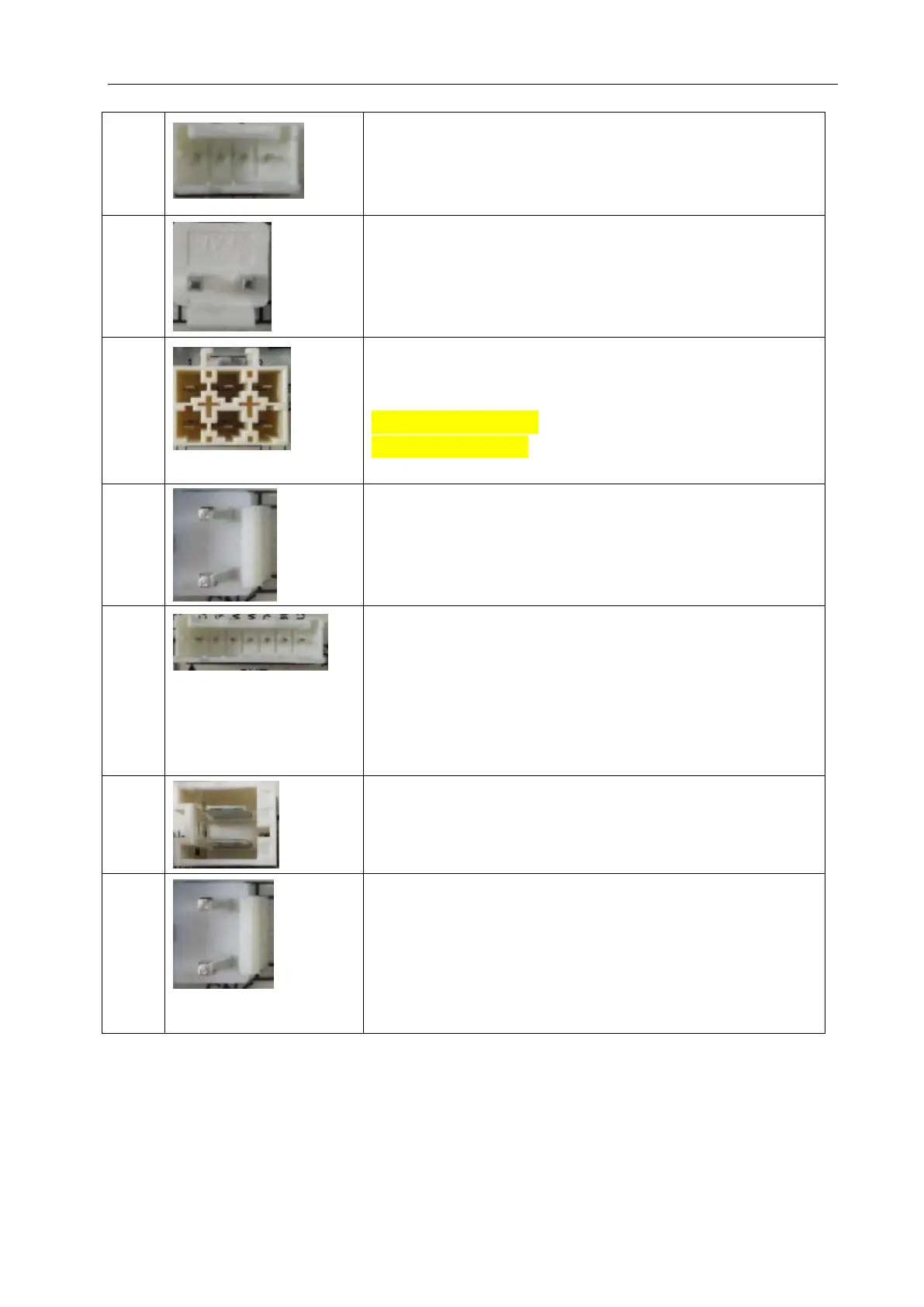

CN3
PIN1：TXD
PIN2：RXD
PIN3：GND
PIN4：+5V
CN4
Door Lock status detection
CN5
PIN1：Cold valve
PIN2：Hot valve
PIN3：Drain pump
PIN4：Detergent valve
PIN5：Softener valve
PIN6：NC
CN6
PIN1：Retractor
PIN2：NC
CN7
PIN1: Common
PIN2: GND
PIN3: Water level sensor
PIN4: Water level sensor
PIN5: Reed switch
PIN6: Out of Balance Switch
PIN7: 12V
CN8
PIN1: Negative rotation control
PIN2: Positive rotation control
CN12
Door lock control
