Midea MAP10V1JWT-B User Manual

17

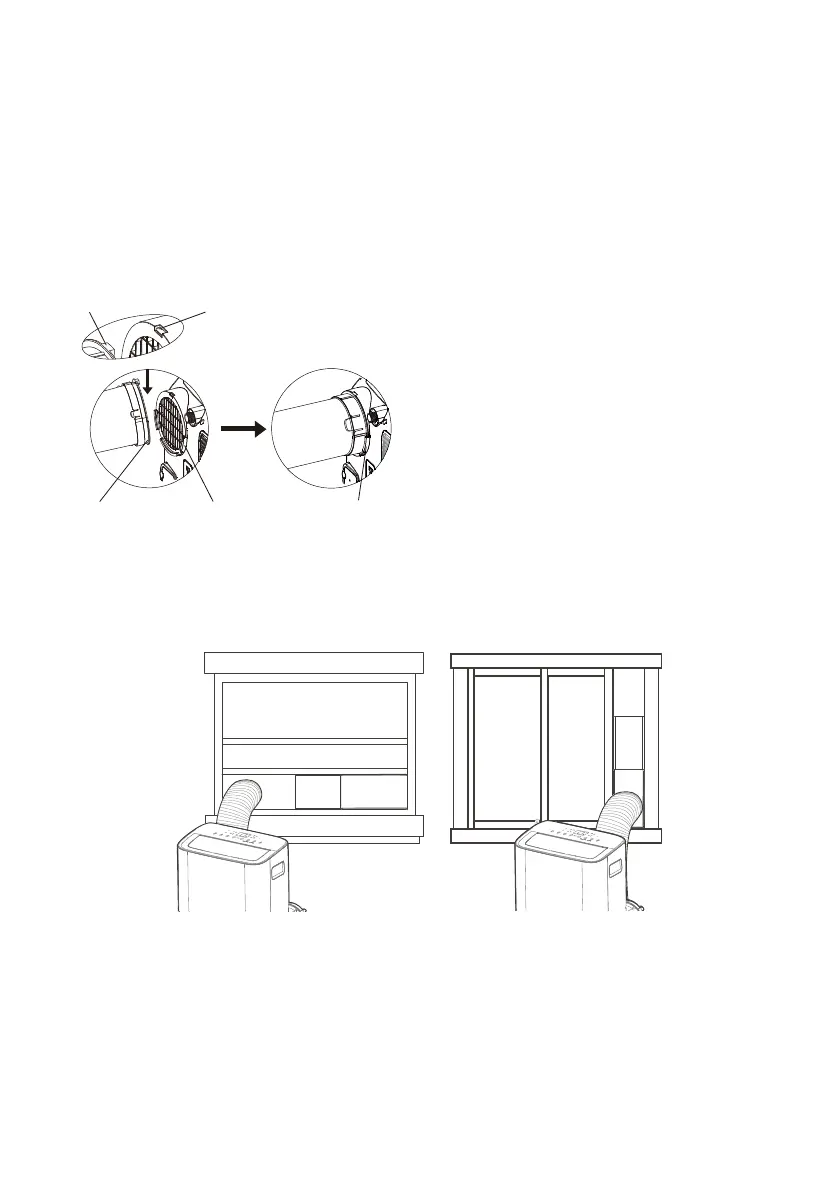

6 - Install The Exhaust Hose Assembly To The Unit:
7 - Connect The Adaptor To The Unit And The Window:
Insert the window slider adapter into the hole of the window slider.
Step 1: Insert the window slider assembly into the window opening.
Step 2: Cut the non-adhesive foam seal C strip to match the height of the window. Insert
the seal between the glass and the window frame to prevent air and insects from
getting into the room.
Step 3: If desired, install the security bracket with 2 screws as shown.
Push the exhaust hose into the air outlet
opening of the unit along the arrow direction.
Hung Window Installation Sliding Window Installation
Hook Hook Seat
Lower
groove
Adapter Make sure the
adaptor is inserted
into the lower groove
of the air outlet.

Midea MAP10V1JWT-B Specifications

General

Brand	Midea
Model	MAP10V1JWT-B
Category	Air Conditioner
Language	English
