Midea MAP12S1TBL Owner's Manual & Installation Manual


Page 14


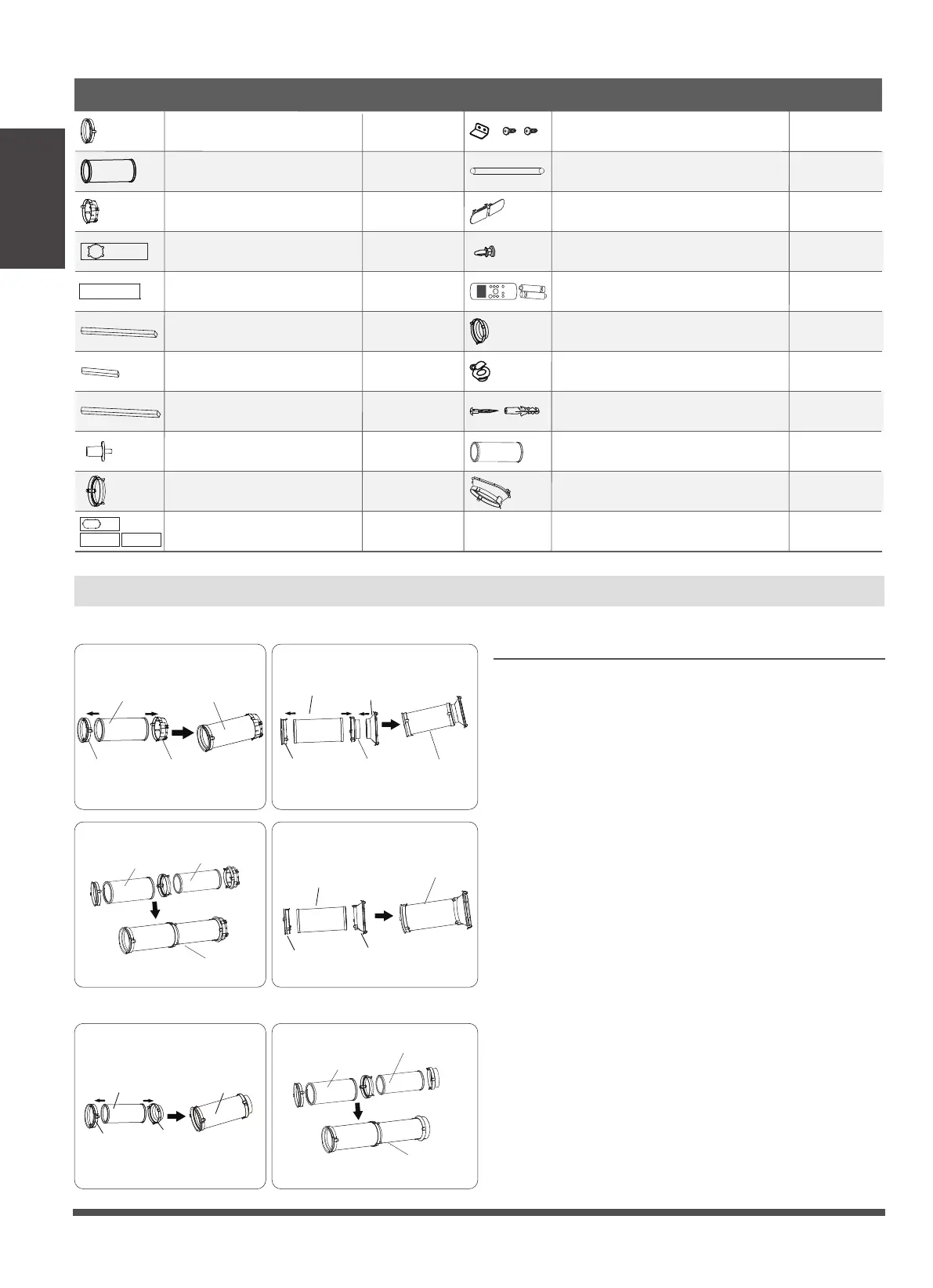

Installation
Instructions
Other Regions
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON /OFF
TEM P
SHO R T CU T
TIME R
ON TIME R
OFF
MO DE
FAN
SLE EP
SW ING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)
Wall Exhaust Adaptor A
(only for wall installation models)
2 pc(*)Foam Seal A (Adhesive)
1 pc(*)
Wall Exhaust Adaptor B(with cap)
(only for wall installation models)
2 pc(*)Foam Seal B (Adhesive)
4 set(*)
Screw and anchor
(only for wall installation models)
1 pc(*)Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc/2 pc(*)
1 pc(*)
Exhaust Hose Adaptor
Extended Exhaust Hose
1 pc(*)Air exhaust passage
Window Installation Kit
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Window slider
adaptor
Exhaust hose
assembly
Exhaust hose
Air exhaust
passage
Unit adaptor
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
Unit adaptor
Exhaust hose
Exhaust hose
assembly
Window slider
adaptor
Model D
Type window installation:
Exhaust hose
Extended
Exhaust hose
Exhaust hose
assembly
Model C
Type wall installation:
Exhaust hose assembly
Wall exhaust adaptor A
Exhaust hose
Unit adaptor
Exhaust hose
Extended Exhaust
hose
Exhaust hose
assembly
Model A Model B
Model A Model B
1 set(*)Window Sliders

Midea MAP12S1TBL Specifications

General

Cooling Capacity	12000 BTU
Type	Portable
Control Type	Electronic
Noise Level	52 dB
Power Supply	115V/60Hz
Refrigerant	R410A
Features	24-hour timer
Operating Temperature (Cooling)	64°F - 90°F
